Midland Industries MIDM 38085

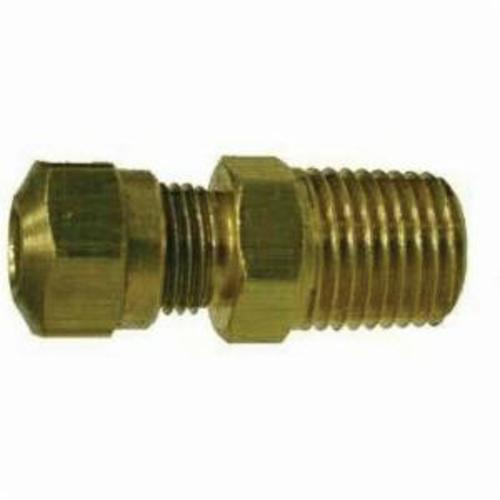

Midland Industries 38085 Tube-to-Pipe Adapter, 3/4 x 1/2 in, Nylon AB x Male NPTF, CA360 Brass

Invoice description: Adapt 3/4x1/2 Nabxmip

UNSPSC: 40183109

Manufacturer PN: 38085

^$16.32 EA

Factory Order
Estimated to ship in 0 days

enlarge

Product Overview

Midland Industries Tube-to-Pipe Adapter, Adapter, 3/4 x 1/2 in Nominal, Nylon AB x Male NPTF, 1 in Hex, 150 psi, -40 to 200 deg F, CA360 Brass

Features
Easy to assemble (no tube preparation or flaring required) built in tube support
Fair vibration resistance
Fittings utilize a ribbed sleeve for compression and positive grip
May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve, insert should be removed for copper tubing use
Additional number of turns from hand-tight 3-1/2
/- 0.02 tolerance on all dimensions

Specifications

ApplicationFor air brake systems except where temperatures exceed 200 deg F or where battery acid can drip on tubing, used with SAE J844 Type A and B NT nylon tubing

End StyleNylon AB x Male NPTF

Fitting/Connector TypeAdapter

Hex Size1 in

MaterialCA360 Brass

Nominal Size3/4 x 1/2 in

Pressure Rating150 psi

Temperature Rating-40 to 200 deg F
