Midland Industries MIDM 38324

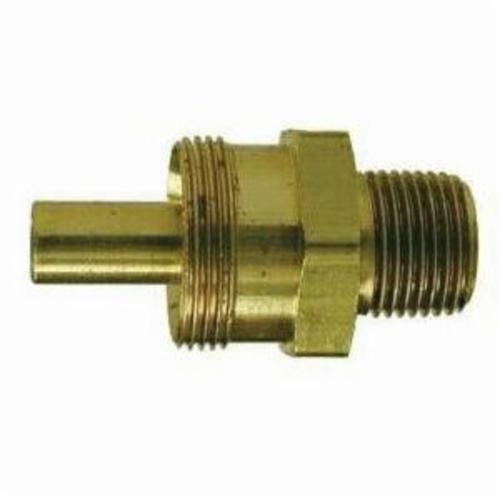

Midland Industries 38324 Hose-to-Pipe Adapter Body, 3/8 x 1/4 in Nominal, Hose x MIP End Style, CA360 Brass
Invoice description:
Body Adptr Hose-to-pipe Adptr Hose X Mip Midland Industries 38324 Hose-to-pipe Adapter Body, 3/8 X 1/4 In Nominal, Hose X Mip End Style, Ca360 Brass
Factory Order
Midland Industries Hose-to-Pipe Adapter Body, Adapter Fitting/Connector, 3/8 x 1/4 in Nominal, Hose x MIP End Style, 0.97 in Hex, 1.93 in Length, 125 psi Pressure, -40 to 120 deg F, CA360 Brass
Features
- Easy to assemble with a good selection of hose end configurations
- Can be used for nearly any brake line
- Brass material offers excellent resistance against corrosion
- Pressure determined by maximum working pressure for hose size up to 125 psi
- /- 0.02 tolerance on all dimensions
Specifications
ApplicationFor air brake hose connection
End StyleHose x MIP
Fitting/Connector TypeAdapter
Hex Size0.97 in
Length1.93 in
MaterialCA360 Brass
Nominal Size3/8 x 1/4 in
Pressure Rating125 psi
Temperature Rating-40 to 120 deg F
Additional Information
Standards/ApprovalSAE and DOT (FMVCS 10 GAL)
Country of OriginTW
