Midland Industries MIDM 46255

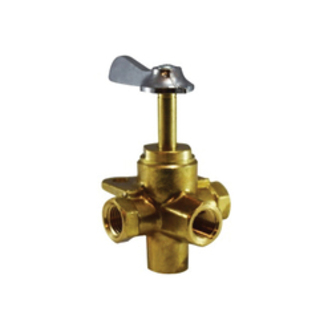

Midland Industries 46255 4-Way Valve, 1/4 in Nominal, FIP End Style, 30 psi Pressure, Brass Body
Invoice description:
Valve 4-way 1/4in Fip 30 Psi Brs Midland Industries 46255 4-way Valve, 1/4 In Nominal, Fip End Style, 30 Psi Pressure, Brass Body
Factory Order
Midland Industries 4-Way Valve, 1/4 in Nominal, FIP End Style, 30 psi Pressure, -40 to 150 deg F, Media: Air/Detergent/Gasoline/Oil/Water, Brass Body
Features
- Side outlet
- Bracket mounting
- 4-way celcon roter standard
- O-Ring sealed
- Designed to operate in systems where instantaneous port selection is desired
- O-Ring sealed cap and stem eliminate leakage to atmosphere
- Mating brass body and celcon plug produce a fine seal that will not seize or gall
- 1-3/8 in stem length
- 9/32 in fluid port size
- With 360 deg click
Specifications
Body MaterialBrass
End StyleFIP
MediaAir/Detergent/Gasoline/Oil/Water
Nominal Size1/4 in
Pressure Rating30 psi
Temperature Rating-40 to 150 deg F
Additional Information
Country of OriginUS
