Midland Industries MIDM 46905I

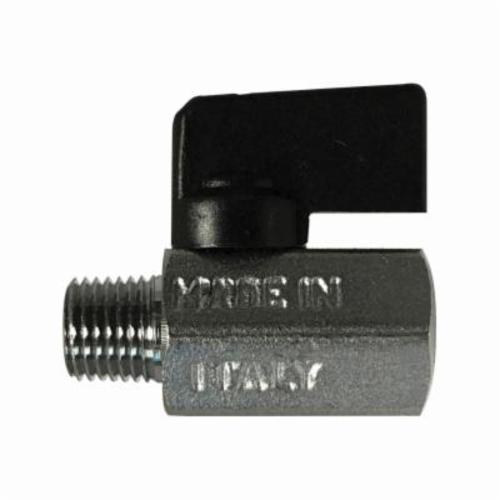

Midland Industries 46905I Mini Ball Valve, 1/2 in Nominal, MNPT x FNPT End Style, CW517N Forged Brass Body, PTFE Ball Seat/NBR 80 O-Ring Softgoods, Import
Invoice description:
Valve Ball 1/2in Mnpt X Fnpt Import Mini Midland Industries 46905i Mini Ball Valve, 1/2 In Nominal, Mnpt X Fnpt End Style, Cw517n Forged Brass Body, Ptfe Ball Seat/nbr 80 O-ring Softgoods, Import
Factory Order
Midland Industries Ball Valve, Mini, 1/2 in Nominal, MNPT x FNPT End Style, 235 psi, 300 psi at 75 deg F Pressure, 32 to 176 deg F, CW517N Polished Chrome Brass Ball, CW517N Forged Brass Body, CW614N Brass Ring Unit, Stem/UNI 5771 Steel Screw Trim, PTFE Ball Seat/NBR 80 O-Ring Softgoods, Polished Chrome, 2.14 in OAL Dimensions, Domestic/Import: Import
Features
- Longer body style for longer, deeper thread connections
- One piece drawn sand blasted chrome plated body
- Each valve is seal tested for maximum safety
- Double seal system allows valve to be operated in both directions making installation easier
- Blowout-proof brass stem
- 1/4 in turn nylon handle with mechanical stop
- PTFE ball seat and NBR 80 O-Ring
Specifications
Ball MaterialCW517N Polished Chrome Brass
Body MaterialCW517N Forged Brass
Dimensions2.14 in OAL
Domestic/ImportImport
End StyleMNPT x FNPT
FinishPolished Chrome
Nominal Size1/2 in
Pressure Rating235 psi, 300 psi at 75 deg F
Softgoods MaterialPTFE Ball Seat/NBR 80 O-Ring
Temperature Rating32 to 176 deg F
Trim MaterialCW614N Brass Ring Unit, Stem/UNI 5771 Steel Screw
TypeMini
Additional Information
Standards/ApprovalANSI B1.20.1|NSF Approved
Country of OriginIT
