Midland Industries MIDM 46922A

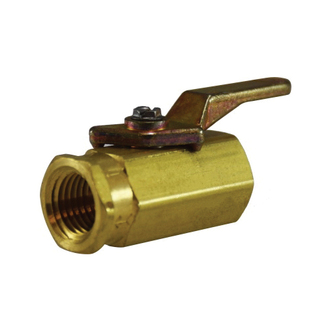

Midland Industries 46922A Miniature Ball Valve, 1/4 in Nominal, FIP End Style, Brass Body, FKM O-Ring/Stem/Seal Softgoods

Invoice description: Valve Ball Mintr 1/4in F Ip Brs 1000psig Midland Industries 46922a Miniature Ball Valve, 1/4 In Nominal, Fip End Style, Brass Body, Fkm O-ring/stem/seal Softgoods

UNSPSC: 40141607

Manufacturer PN: 46922A

^$25.50 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

Midland Industries Miniature Ball Valve, 1/4 in Nominal, FIP, 1000 psig, -40 to 300 deg F, Media: Air, Oil and Water, Nickel Plated Brass Ball, Brass Body, Highly Inert PTFE Seat Trim, FKM O-Ring/Stem/Seal

Features
Blow-out proof stem for safety
1/4 turn instantaneous on-off operation
Quarter-turn handle design
Non-adjusting FKM o-ring stem seal design never needs tightening
Good for propane, Gas and diesel
Not good for steam

Specifications

ApplicationTight, Confined Areas, Or When Routing Aesthetics Are Desired Include Instrumentation, Gas Sampling Systems, High Pressure Gauges, Test Stands, Hydraulic and Pneumatic Service Lines on Capital Equipment

Ball MaterialNickel Plated Brass

Body MaterialBrass

End StyleFIP

MediaAir, Oil and Water

Nominal Size1/4 in

Pressure Rating1000 psig

Softgoods MaterialFKM O-Ring/Stem/Seal

Temperature Rating-40 to 300 deg F

Trim MaterialHighly Inert PTFE Seat
