Midland Industries MIDM 46924I

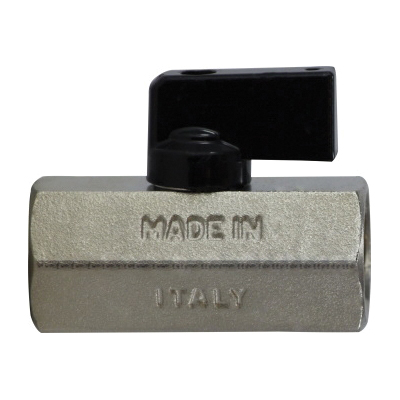

Midland Industries 46924I Mini Ball Valve, 1/2 in, FNPT, CW517N Forged Brass Body, Import
Invoice description:
Valve Ball 1/2in Fnpt Cw 517n Fgd Brs Midland Industries 46924i Mini Ball Valve, 1/2 In, Fnpt, Cw517n Forged Brass Body, Import
Factory Order
Midland Industries Ball Valve, Mini, 1/2 in Nominal, FNPT, 235 psi, 300 psi at 75 deg F, 32 to 176 deg F, CW517N Polished Chrome Brass Ball, CW517N Forged Brass Body, CW614N Brass Ring Unit, Stem/UNI 5771 Steel Screw Trim, PTFE Ball Seat/NBR 80 O-Ring, Polished Chrome, 2.18 in OAL, 1.26 in Top of Handle to Inlet Center, Import
Features
- Longer body style for longer, deeper thread connections
- One piece drawn sand blasted chrome plated body
- Each valve is seal tested for maximum safety
- Double seal system allows valve to be operated in both directions making installation easier
- Blowout-proof brass stem
- 1/4 in turn nylon handle with mechanical stop
- PTFE ball seat and NBR 80 O-Ring
Specifications
Ball MaterialCW517N Polished Chrome Brass
Body MaterialCW517N Forged Brass
Dimensions2.18 in OAL, 1.26 in Top of Handle to Inlet Center
Domestic/ImportImport
End StyleFNPT
FinishPolished Chrome
Nominal Size1/2 in
Pressure Rating235 psi, 300 psi at 75 deg F
Softgoods MaterialPTFE Ball Seat/NBR 80 O-Ring
Temperature Rating32 to 176 deg F
Trim MaterialCW614N Brass Ring Unit, Stem/UNI 5771 Steel Screw
TypeMini
Additional Information
Standards/ApprovalANSI B1.20.1|NSF Approved
Country of OriginIT
