Midland Industries MIDM 64697

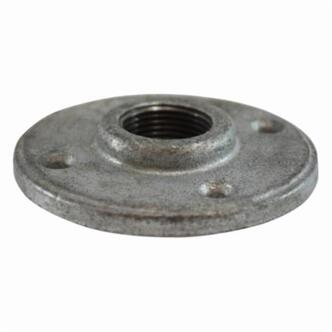

Midland Industries 64697 Round Floor Flange, 2 in Nominal, 150 lb, Malleable Iron, Galvanized, Import
Invoice description:
Flange Fl 2in 1in Class 150lb 300psi Rnd Midland Industries 64697 Round Floor Flange, 2 In Nominal, 150 Lb, Malleable Iron, Galvanized, Import
Factory Order
Midland Industries Floor Flange, Round, Fitting/Connector Type: Flange, 2 in Nominal, 1 in Thickness, 150 lb Pressure Class, 300 psi Pressure, Malleable Iron, Galvanized, 5-1/2 in Dia, Import
Features
- With better molds we can reduce parting lines and rough edges resulting in better fluid flow
- By using a low temperature galvanizing process the coating is more durable which means a longer lasting fitting
- All fittings are 100% pressure tested to 300 Class
- 5% min elongation
- 28.4kg/mm minimum tensile strength
- 0.31 in hole size
Specifications
Dimensions5-1/2 in Dia
Domestic/ImportImport
FinishGalvanized
Fitting/Connector TypeFlange
MaterialMalleable Iron
Nominal Size2 in
Pressure Class150 lb
Pressure Rating300 psi
Thickness1 in
TypeRound
Additional Information
Standards/ApprovalANSI B 16.3|FM Approved|UL Listed|RoHS Compliant
Country of OriginCN
