Midland Industries MIDM 64391

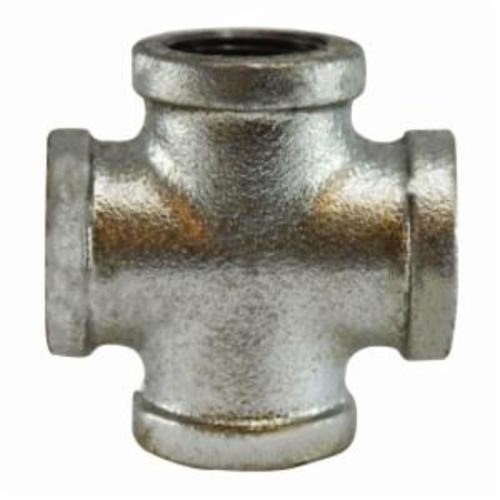

Midland Industries 64391 Pipe Cross, 1/4 in Nominal, 150 lb, Malleable Iron, Galvanized, Import
Invoice description:
Cross Pipe 1/4in Class 1 50lb 300psi Galv Midland Industries 64391 Pipe Cross, 1/4 In Nominal, 150 Lb, Malleable Iron, Galvanized, Import
Factory Order
Midland Industries Pipe Cross, Fitting/Connector Type: Cross, 1/4 in Nominal, 150 lb Pressure Class, 300 psi Pressure, Malleable Iron, Galvanized, 1.6 in L, Import
Features
- With better molds we can reduce parting lines and rough edges resulting in better fluid flow
- By using a low temperature galvanizing process the coating is more durable which means a longer lasting fitting
- All fittings are 100% pressure tested to 300 Class
- 5% min elongation
- 28.4kg/mm minimum tensile strength
Specifications
Dimensions1.6 in L
Domestic/ImportImport
FinishGalvanized
Fitting/Connector TypeCross
MaterialMalleable Iron
Nominal Size1/4 in
Pressure Class150 lb
Pressure Rating300 psi
Additional Information
Standards/ApprovalANSI B 16.3|FM Approved|UL Listed|RoHS Compliant
Country of OriginCN
