Midland Industries MIDM 65697

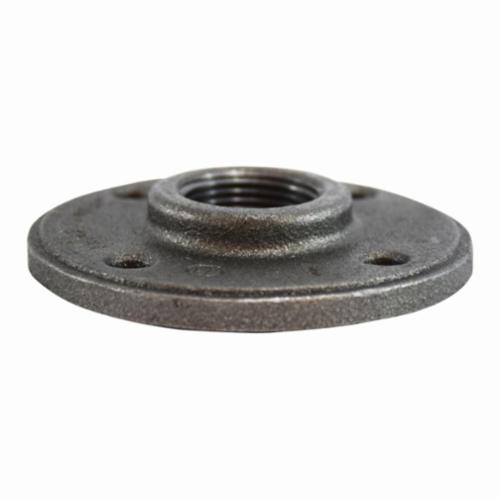

Midland Industries 65697 Round Floor Flange, 2 in Nominal, Malleable Iron, Black Oxide, Import
Invoice description:
Flange Fl 2in 5-1/2x1in 150lb 300psi Rnd Midland Industries 65697 Round Floor Flange, 2 In Nominal, Malleable Iron, Black Oxide, Import
Factory Order
Midland Industries 65697 Floor Flange, Round, Fitting/Connector Type: Flange, 2 in Nominal, 1 in Thickness, 5-1/2 in Length, 300 psi, Malleable Iron, Black Oxide, Import
Features
- With better molds we can reduce parting lines and rough edges resulting in better fluid flow
- By using a low temperature galvanizing process the coating is more durable which means a longer lasting fitting
- All Fittings are 100% Pressure Tested to 300# Class
- 5% min elongation
- 28.4kg/mm Min tensile strength
- 0.31 in hole
Specifications
Domestic/ImportImport
FinishBlack Oxide
Fitting/Connector TypeFlange
Length5-1/2 in
MaterialMalleable Iron
Nominal Size2 in
Pressure Rating300 psi
Thickness1 in
TypeRound
Additional Information
Standards/ApprovalUL/FM Listed|RoHS Compliant|ANSI B 16.3
Country of OriginCN
