Midland Industries MIDM 940462

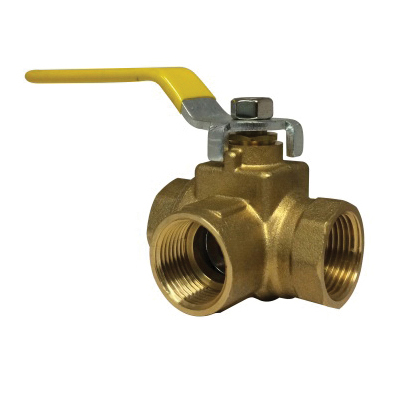

Midland Industries 940462 3-Way Ball Valve, 3/4 in Nominal, FIPT End Style, Forged Brass Body, Full Port, PTFE Seal/PVC Cover/NBR O-Ring Softgoods, Import
Invoice description:
Valve Ball 3/4in Fipt Fg D Brs Full 3-way Midland Industries 940462 3-way Ball Valve, 3/4 In Nominal, Fipt End Style, Forged Brass Body, Full Port, Ptfe Seal/pvc Cover/nbr O-ring Softgoods, Import
Factory Order
Midland Industries Ball Valve, 3-Way, 3/4 in Nominal, FIPT, 600 psi WOG, 0 to 230 deg F, Full Port, Media: Gas, Oil and Water, Forged Brass Body, Brass Stem, Ball Disc/PTFE Seat Trim, PTFE Seal/PVC Cover/NBR O-Ring, 2.16 in H x 2.56 in W, Import
Features
- Double O-Ring stem packing
- Blow-out proof stem
- Steel spring washer/nut/handle, brass end plug/socket
- PTFE seal, PVC cover and NBR O-Ring
Specifications
Body MaterialForged Brass
Dimensions2.16 in H x 2.56 in W
Domestic/ImportImport
End StyleFIPT
MediaGas, Oil and Water
Nominal Size3/4 in
Port TypeFull
Pressure Rating600 psi WOG
Softgoods MaterialPTFE Seal/PVC Cover/NBR O-Ring
Temperature Rating0 to 230 deg F
Trim MaterialBrass Stem, Ball Disc/PTFE Seat
Type3-Way
Additional Information
Country of OriginCN
