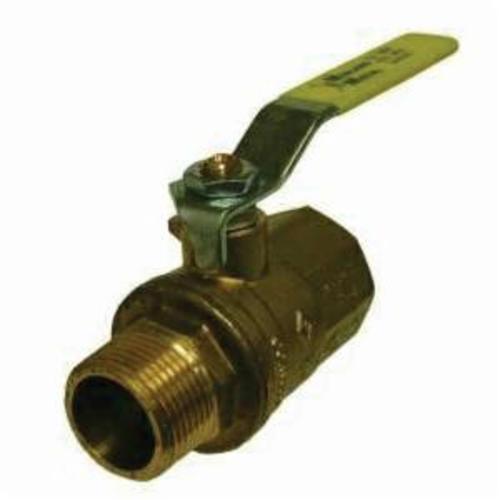

Midland Industries MIDM 948103

Midland Industries 948103 Ball Valve, 1/2 in Nominal, MIP x FIP End Style, CW617N Forged Brass Body, Full Port, NBR 80 O-Ring Softgoods, Import

Invoice description: Valve Ball 1/2in Mip X F Ip Full Midland Industries 948103 Ball Valve, 1/2 In Nominal, Mip X Fip End Style, Cw617n Forged Brass Body, Full Port, Nbr 80 O-ring Softgoods, Import

UNSPSC: 40141607
Manufacturer PN: 948103
$20.81 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Ball Valve, 1/2 in Nominal, MIP x FIP, 600 psi WOG, 150 psi WSP, -20 to 248 deg F, Full Port, Media: Cold Water, Oil, Gas and Saturated Steam, CW617N Polished Chrome Brass Ball, CW617N Forged Brass Body, CW617N Brass Stem/PTFE Ball Stem/PTFE Stem Antif Seat Trim, NBR 80 O-Ring, 1.57 in H x 2.54 in W, Import

  • Features

  • Suitable for full range of liquids and Gases
  • Bottom loaded, pressure retaining stem
  • Yellow vinyl insulator on heavy duty plated carbon steel handles
  • Low operating torque
  • Adjustable stem packing gland
  • Forged brass for more strength
  • Virgin TFE stem packing seal, thrust washer and seats
  • Bottom entry, blow-out proof stem
  • Deeper threads for better connections
  • Minimal pressure drop due to large full size ports

Specifications

Ball MaterialCW617N Polished Chrome Brass
Body MaterialCW617N Forged Brass
Dimensions1.57 in H x 2.54 in W
Domestic/ImportImport
End StyleMIP x FIP
MediaCold Water, Oil, Gas and Saturated Steam
Nominal Size1/2 in
Port TypeFull
Pressure Rating600 psi WOG, 150 psi WSP
Softgoods MaterialNBR 80 O-Ring
Temperature Rating-20 to 248 deg F
Trim MaterialCW617N Brass Stem/PTFE Ball Stem/PTFE Stem Antif Seat

Additional Information

Standards/ApprovalGas Approved|CSA AGA 3.88 5 PSIG|UL842|UL258|UL125|FM|ANSI B1.20.1
Country of OriginIT
