Midland Industries MIDM 948132

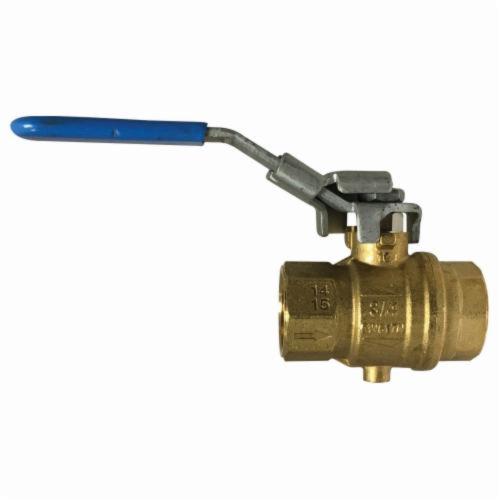

Midland Industries 948132 Automatic Drain Latch Lock Handle Exhaust Valve, 3/8 in Nominal, Forged Brass Body, Full Port
Invoice description:
Valve Exh 3/8in Fgd Brs Full 200psi Cwp Midland Industries 948132 Automatic Drain Latch Lock Handle Exhaust Valve, 3/8 In Nominal, Forged Brass Body, Full Port
Factory Order
Midland Industries Exhaust Valve, Automatic Drain Latch Lock Handle, 3/8 in Nominal, 200 psi CWP, -4 to 350 deg F, Full Port, Forged Brass Body
Features
- Full-port hot forged brass ball valve, blow-out proof stem, downstream automatic vent with lockable handle
- With NPT tap for drain
- Valve closed and draining occurs
- Upstream seat prevents air flow, downstream system is vented to atmosphere
Specifications
Body MaterialForged Brass
Nominal Size3/8 in
Port TypeFull
Pressure Rating200 psi CWP
Temperature Rating-4 to 350 deg F
TypeAutomatic Drain Latch Lock Handle
Additional Information
Standards/ApprovalOSHA Compliant
Country of OriginUS
