Midland Industries MIDM 949104

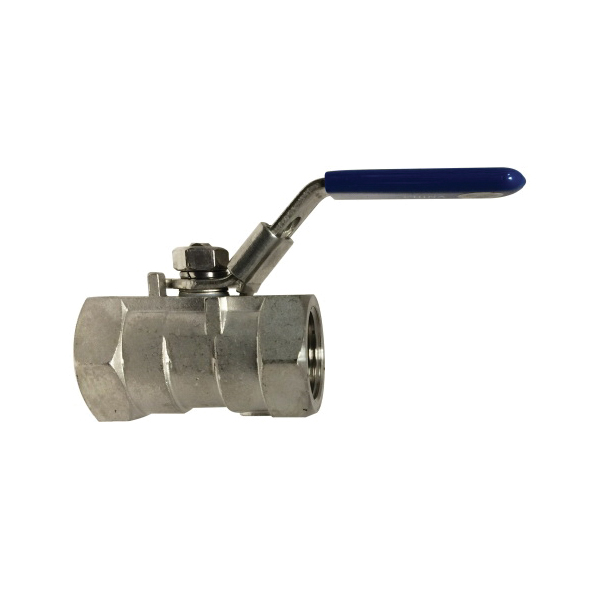

Midland Industries 949104 1-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, ASTM-A351 CF8M 316 Stainless Steel Body, Standard Port, PTFE Thrust Washer Stem Packing Softgoods, Import

Invoice description: Valve Ball 3/4in Fnpt St D 1000psi Wog Midland Industries 949104 1-piece Ball Valve, 3/4 In Nominal, Fnpt End Style, Astm-a351 Cf8m 316 Stainless Steel Body, Standard Port, Ptfe Thrust Washer Stem Packing Softgoods, Import

UNSPSC: 40141607
Manufacturer PN: 949104
$60.53 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Ball Valve, 1-Piece, 3/4 in Nominal, FNPT, 1000 psi WOG, Standard Port, Media: Gas, Oil and Water, 316 Stainless Steel Ball, ASTM-A351 CF8M 316 Stainless Steel Body, AISI 316 Stainless Steel Stem/PTFE Ball Seat/PVC Sleeve Trim, PTFE Thrust Washer Stem Packing, 2.32 in H x 2.95 in W, Import

  • Features

  • Manufactured for harsh environments with female NPT threads

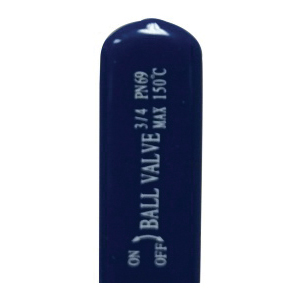

  • Locking handle for greater security
  • Standard port has restricted flow
  • Made with corrosion resistant stainless steel materials
  • Investment castings for body and cap
  • Internal entry blow-out proof stem
  • Valves will accept a pad-lock on the handle
  • AISI 304 stainless steel stem nut/handle/packing ring, ASTM-A351 CF8M 316 stainless steel cap
  • PTFE thrust washer stem packing

Specifications

Ball Material316 Stainless Steel
Body MaterialASTM-A351 CF8M 316 Stainless Steel
Dimensions2.32 in H x 2.95 in W
Domestic/ImportImport
End StyleFNPT
MediaGas, Oil and Water
Nominal Size3/4 in
Port TypeStandard
Pressure Rating1000 psi WOG
Softgoods MaterialPTFE Thrust Washer Stem Packing
Trim MaterialAISI 316 Stainless Steel Stem/PTFE Ball Seat/PVC Sleeve
Type1-Piece

Additional Information

Standards/ApprovalANSI B2.1/API 598
Country of OriginCN
