Midland Industries MIDM 949124

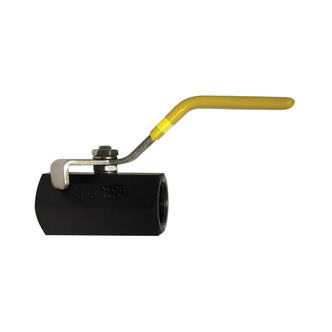

Midland Industries 949124 Ball Valve, 3/4 in Nominal, Thread End Style, ASTM-A108 CL 1018/AISI 1021 Carbon Steel Body, Standard Port, PTFE Thrust Washer Cap Seal/Packing Softgoods, Import

Invoice description: Valve Ball 3/4in Thd Std Import 304 Sst Midland Industries 949124 Ball Valve, 3/4 In Nominal, Thread End Style, Astm-a108 Cl 1018/aisi 1021 Carbon Steel Body, Standard Port, Ptfe Thrust Washer Cap Seal/packing Softgoods, Import

UNSPSC: 40141607
Manufacturer PN: 949124
$80.94 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Ball Valve, 3/4 in Nominal, Thread End Style, 2000 psi WOG Pressure, -60 to 450 deg F, Standard Port, Media: Gas, Oil and Water, 304 Stainless Steel Ball, ASTM-A108 CL 1018/AISI 1021 Carbon Steel Body, 316 Stainless Steel Stem/PTFE Ball Seat/Vinyl Grip Handle Sleeve Trim, PTFE Thrust Washer Cap Seal/Packing Softgoods, 2.72 in H x 2.58 in W Dimensions, Domestic/Import: Import

  • Features

  • Blow-out proof stem
  • 100% air tested under water, at 100 psi, open and closed positions
  • Generic handles
  • 1-piece ball valve reducing bore
  • 304 stainless steel gland nut/washer/stem nut/handle nut/washer/gland
  • PTFE thrust washer cap seal and packing

Specifications

ApplicationChemical and Industrial Applications
Ball Material304 Stainless Steel
Body MaterialASTM-A108 CL 1018/AISI 1021 Carbon Steel
Dimensions2.72 in H x 2.58 in W
Domestic/ImportImport
End StyleThread
MediaGas, Oil and Water
Nominal Size3/4 in
Port TypeStandard
Pressure Rating2000 psi WOG
Softgoods MaterialPTFE Thrust Washer Cap Seal/Packing
Temperature Rating-60 to 450 deg F
Trim Material316 Stainless Steel Stem/PTFE Ball Seat/Vinyl Grip Handle Sleeve

Additional Information

Country of OriginCN
