Midland Industries MIDM 973325

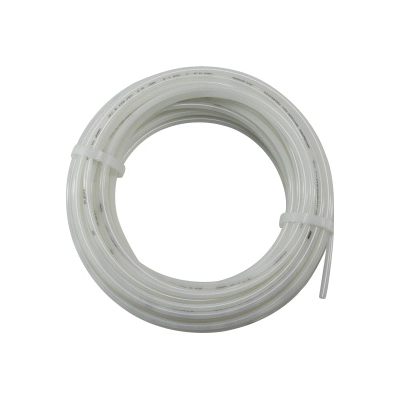

Midland Industries 973325 Lightweight Tubing, 4 mm ID x 100 ft L, 1 mm THK Wall, Nylon 12
Invoice description:
Tubing 6mm 4mm 100ft 1mm 1200psi Nyl 12 Midland Industries 973325 Lightweight Tubing, 4 Mm Id X 100 Ft L, 1 Mm Thk Wall, Nylon 12
Factory Order
Midland Industries Tubing, Lightweight, 4 mm ID, 100 ft Length, 1 mm Wall Thickness, 1200 psi Working, -60 to 200 deg F, Nylon 12
Features
- Nylon 12 tubing is recognized as an industry standard for applications which require higher working pressures and higher heat and/or chemical resistance
- Ideal for outdoor use applications because of its superior stress crack resistance
- Strong, lightweight and has a very low moisture absorbtioin rate compared to other nylons
- Nylon 12 tubing can be used with standard push-to-connect fittings and compression fittings for simple installation
- Semi-rigid properties, a thinner tube wall provides higher flow rates and working pressure
- Flexible, abrasion resistant, heat resistant, chemical resistant, heat/ light stabilized, black - UV rated
- 28 in Hg vacuum rating
- Rockwell 78 R, Shore D 70 hardness
- 1/8 in -1/4 in is +/- 0.004, 3/4 in -1/2 in is +/- 0.006 tolerance
Specifications
ApplicationPneumatic Tools, Pneumatic Piping, Instrumentation, Lube Lines, Coolants, Refrigeration, Chemical Transfer, Vacuum, Process Control, Fuel Lines, Paint Supply Lines and Laboratories
Inside Diameter4 mm
Length100 ft
MaterialNylon 12
Temperature Rating-60 to 200 deg F
TypeLightweight
Wall Thickness1 mm
Working Pressure1200 psi
Additional Information
Country of OriginUS
