Ingersoll-Rand IR 2235TIMAX

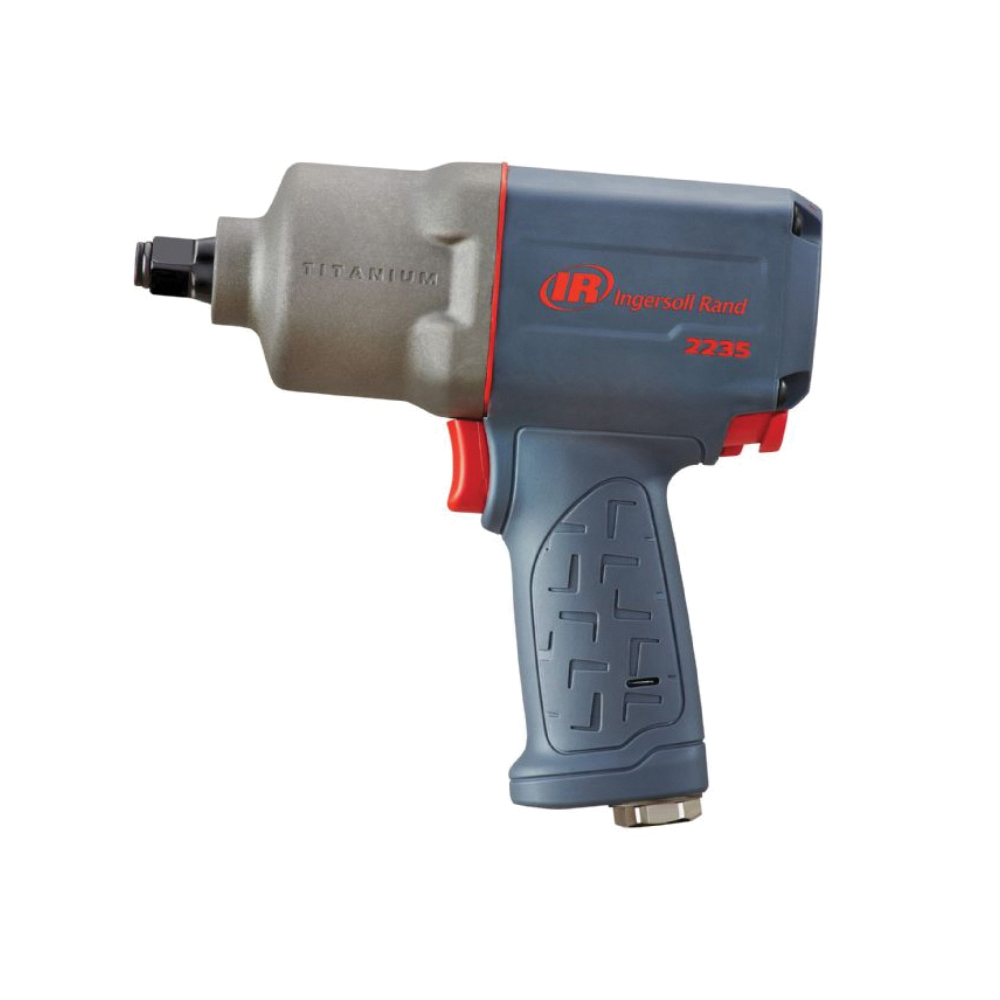

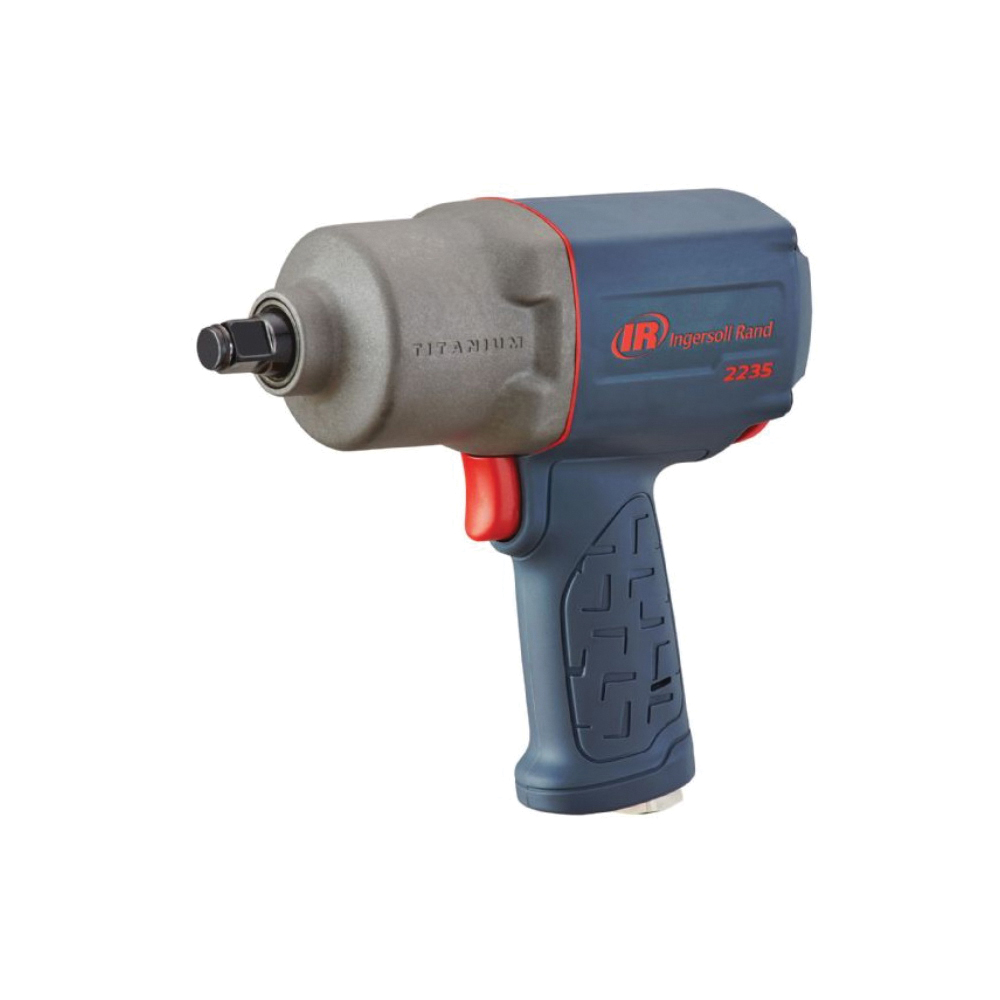

Ingersoll-Rand Impactool 2235TIMAX 2235 General Duty Air Impact Wrench, 1/2 in Drive, 900 to 930 ft-lb Torque, 24 cfm Air Flow, 7.6 in OAL

UPC: 663023119960
UNSPSC: 27131501
Manufacturer PN: 2235TIMAX
$622.64 EA
Factory Order
Estimated to ship in 6 days
QTY:


Ingersoll-Rand Impactool Air Impact Wrench, General Duty, Tool/Kit: Bare Tool, Series: 2235, Hog Ring/Square Drive, 1/2 in Drive, 1220 bpm, 900 to 930 ft-lb, 8500 rpm, 24 cfm, 90 psi Air, 1/4 in NPT in NPT Air Inlet, 3/8 in Minimum Hose Size, Titanium Housing, Pistol Grip, 98 dBA Impacting/103.6 dBA Free Speed, 7.6 in Overall Length

  • Features

  • The high torque output of the powerful vane motor is optimized to increase safety and control over the tool
  • Drop it as many times as you want - this impact wrench can take a beating under even the harshest of work environments
  • If youre looking for an impact wrench series to last through the years, the 2235TiMAX series is the one for you

Specifications

ApplicationFor used to remove and install threaded fasteners
Air Flow Rate24 cfm
Air Inlet1/4 in NPT
Air Pressure90 psi
Blows per Minute1220 bpm
Drive Size1/2 in
Drive TypeHog Ring/Square
Handle TypePistol Grip
Housing MaterialTitanium
Minimum Hose Size3/8 in
Overall Length7.6 in
Series2235
Sound Level98 dBA Impacting/103.6 dBA Free Speed
Speed8500 rpm
Tool/KitBare Tool
Torque Rating900 to 930 ft-lb
TypeGeneral Duty
