Iscar ISCAR 3601067

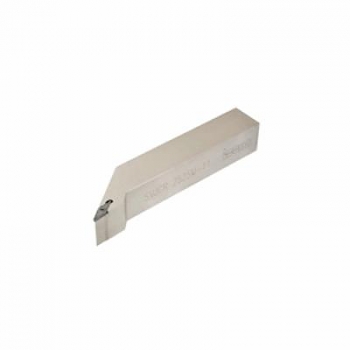

Iscar 3601067 ISOTURN External Indexable Turning Tool Holder, ANSI Code: SVJCL 12-3, SVJC Tool Holder, VC..33.. Insert, Left Hand Cutting, 3/4 in H x 3/4 in W Square Shank, 93 deg Lead Angle, 0 deg Axial/Radial Rake, 4-1/2 in OAL

UNSPSC: 23242106
Manufacturer PN: 3601067
$237.32 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Indexable Turning Tool Holder, External, Series: ISOTURN, SVJC Tool Holder, 4-1/2 in Overall Length, Square Shank, 3/4 in H x 3/4 in W Shank, Insert Compatibility: VC..33.., Left Hand Cutting, 1 in Back of Bar to Cutting Edge, 93 deg Lead Angle, 1.18 in Head Length, ANSI Code: SVJCL 12-3, 0 deg Axial/Radial Rake

  • Features

  • SVJCR/L - Screw lock tools carrying the 35 deg diamond inserts with 7 deg clearance angle

Specifications

ApplicationTurning Applications
Type External
Series ISOTURN
Tool Holder Style SVJC
Overall Length 4-1/2 in
Shank Type Square
Shank Size 3/4 in H x 3/4 in W
Insert Compatibility VC..33..
Cutting Direction Left Hand
