JET JET JLH-150WO-15

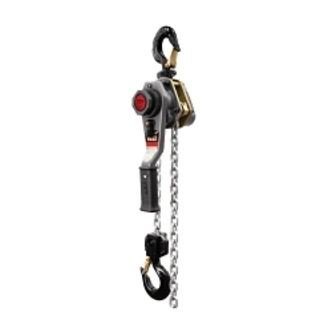

JET JT9-376302 JLH Lever Chain Hoist, 1.5 ton Load, 15 ft H Lifting, 74.89 lb Rated, 1.26 in Hook Opening

Invoice description: Hoist Lever 1-1/2t 15'li Ft 376302

UPC: 731325472745
UNSPSC: 24101602
Manufacturer PN: JT9-376302
$937.92 EA
In stock (1)
QTY:


JET, JT9-376302, Lever Chain Hoist, Series: JLH, 1.5 ton Load, 15 ft Lifting Height, 13.19 in Minimum Between Hooks, 1.26 in Hook Opening, 74.89 lb Pull to Lift, 10-1/4 in Lever Length, Steel Chain, Weston Style Double Ratchet Pawl Brake, Lever Handle, 6.38 in W Dimensions

  • Features

  • Caged needle bearings support the load sheave to increase efficiency and promote smooth operation
  • Enhanced ergonomic grip allows for greater operator control and increased comfort
  • Grade 100, corrosive-resistant plated load chain is a smaller, more compact link that is 20% stronger than Grade 80 load chain
  • Heat treated load plates
  • Industrial rated alloy steel hooks rotate 360 deg for easy rigging
  • Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
  • Fused brake system and offset handle for safety
  • Heavy duty use

Specifications

ApplicationFor confined areas and low headroom applications
Brake TypeWeston Style Double Ratchet Pawl
Chain MaterialSteel
Dimensions6.38 in W
Handle TypeLever
Hook Opening1.26 in
Lever Length10-1/4 in
Lifting Height15 ft
Load Capacity1.5 ton
Minimum Between Hooks13.19 in
Pull to Lift Rated Load74.89 lb
SeriesJLH

Additional Information

WarrantyLifetime
Standards/ApprovalPROP65: This product can expose you to chemicals i
Country of OriginCN
