Coffing Hoists COFF LSB-12000B-10

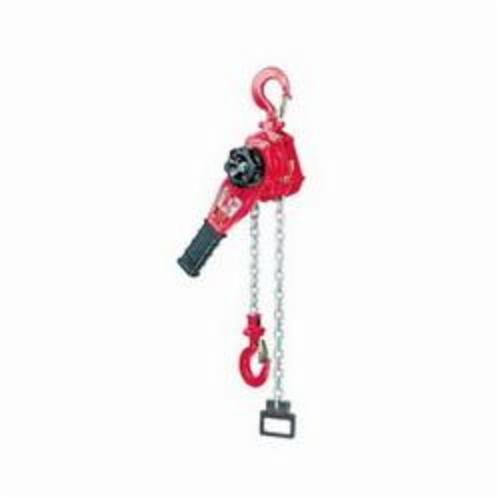

Coffing Hoists 09451W LSB-B Ratchet Lever Chain Hoist, 6 ton Load, 10 ft H Lifting, 76 lb Rated, 13 ft L Chain, 1-3/4 in Hook Opening

UPC: 698303321412
UNSPSC: 24101602
Manufacturer PN: 09451W
$2,426.90 EA
Factory Order
Estimated to ship in 23 days
QTY:


Coffing Hoists Ratchet Lever Chain Hoist, Series: LSB-B, 6 ton Load, 10 ft Lifting Height, 22-3/4 in Minimum Between Hooks, 1-3/4 in Hook Opening, 76 lb Pull to Lift, 14-9/16 in Lever Length, 13 ft Chain Length, Hardened Steel Chain, 2 Reeving, Friction Brake, Cushion Grip/Short Handle

  • Features

  • Optional load limiter alerts operator of a possible overload by allowing the handle to rotate without lifting the higher than capacity load
  • The load limiter can be field-installed
  • Impact resistant, stamped steel housing withstands rigorous use
  • Compact design is portable and easy to rig
  • Double reduction gearing and short, cushioned grip handle provide easy operation with minimal handle effort
  • 360 deg rotating handle provides versatile rigging options when used in confined spaces
  • State-of-the-art free wheeling mechanism allows quick and easy one-handed take-up and positioning of slack chain
  • Enclosed screw and disc type load brake stays clean and dry for positive load positioning
  • Latches on hooks provide positive load engagement
  • Options - shipyard hook available for 1-1/2 ton and 3 ton models
