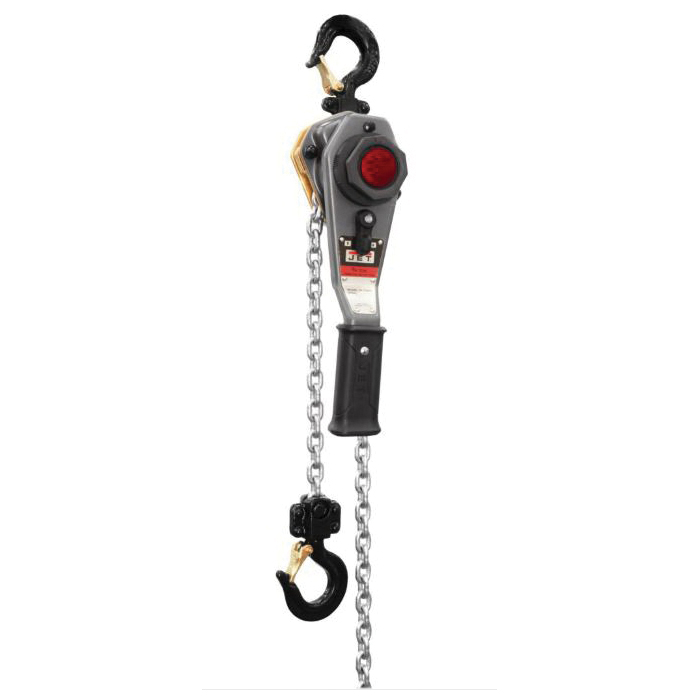

JET® JET JLH-75WO-15

JET® Lever Hoist, Series: JLH, 3/4 ton Load, 15 ft Lifting Height, 11 in Minimum Between Hooks, 1 in Hook Opening, 64 lb Pull to Lift, 9-5/8 in Lever Length, 1 Reeving, Weston Style Double Ratchet Pawl Brake, 5-2/3 in W

• Features

• Backed by a lifetime replacement warranty, JET® revolutionary 1-piece brake design fuses the three components into the safest brake system in the market
• All JLH series lever hoists come with slip clutch style overload protection that prevents lifting or pulling damaging loads beyond the rated capacity of the hoist and when triggered, the overload protection can be reset on-site
• Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
• JET® improved easy free chain design is a 2-step, no load, free chaining system. the system permits quicker hoist positioning and take-up of slack chain and it is engineered not to free chain under load
• The patented, advanced offset handle design allows for extra clearance between the operator's hand and the load chain
• Industrial rated alloy steel hooks rotate 360 deg for easy rigging and slowly stretch to indicate an overload situation
• Enhanced ergonomic grip allows for greater operator control and increased comfort
• Grade 100, corrosive-resistant plated load chain is a smaller, more compact link that is 20% stronger than grade 80 load chain
• Secured with allen screws and lock nuts, the cast steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
• Intended for the harshest environments, the heat treated load plates and case hardened corrosive-resistant internal parts extend the life of the hoist

Specifications

Documents

• Specification Sheet

• Owners/user Manual
