Loctite LOC 60931

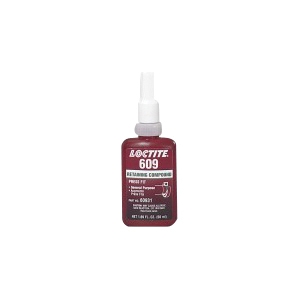

Loctite 135512 609 General Purpose Retaining Compound, 50 mL Bottle, Liquid Form, Green, 1.1
Invoice description:
Compound Retaining 50ml Press Fit/gen Purp
In stock
(10)
Loctite, 135512, Retaining Compound, General Purpose, Series: 609, Bottle Container, 50 mL Container, Composition: Polyglycol Dimethacrylate, 2-Hydroxyethyl Meth Acrylate Ethyl Methacrylate Homopolymer, Cumene Hydroperoxide, Saccharin, Adhesion Promoter, Cumene, Liquid Form, 10 min Setting, 24 hr Curing, Green, Odor/Scent: Mild, -65 to 300 deg F, 1.1 Specific Gravity, >199.94 deg F Flash Point, 2.46 g/L VOC, 125 cPs Viscosity, Flammability: 1, 2300 psi Shear Strength
Features
- Loctite 609 retaining compound general purpose is a low viscosity, rapid curing anaerobic adhesive that augments the strength of press fit assemblies or slip fit assemblies up to 0.006 in dia
- Adds up to 3,000 psi holding power
- Recommended for parts that will need subsequent dismantling, i.e., retention of bearings onto shafts and into housings
- Fills up to 0.006 in gap
Specifications
ApplicationFor general purpose applications
ColorGreen
CompositionPolyglycol Dimethacrylate, 2-Hydroxyethyl Meth Acrylate Ethyl Methacrylate Homopolymer, Cumene Hydroperoxide, Saccharin, Adhesion Promoter, Cumene
Container Size50 mL
Container TypeBottle
Curing Time24 hr
Flammability Rating1
Flash Point>199.94 deg F
FormLiquid
Odor/ScentMild
Series609
Setting Time10 min
Shear Strength2300 psi
Specific Gravity1.1
Temperature Rating-65 to 300 deg F
TypeGeneral Purpose
Viscosity Rating125 cPs
VOC Content2.46 g/L
Additional Information
Standards/ApprovalOSHA 29 CFR 1910.1200|RoHS 2011/65/EU|CFIA Approved|ASTM D-5363|ISO Certified
Country of OriginUS
