Starrett® LSS H610N-6

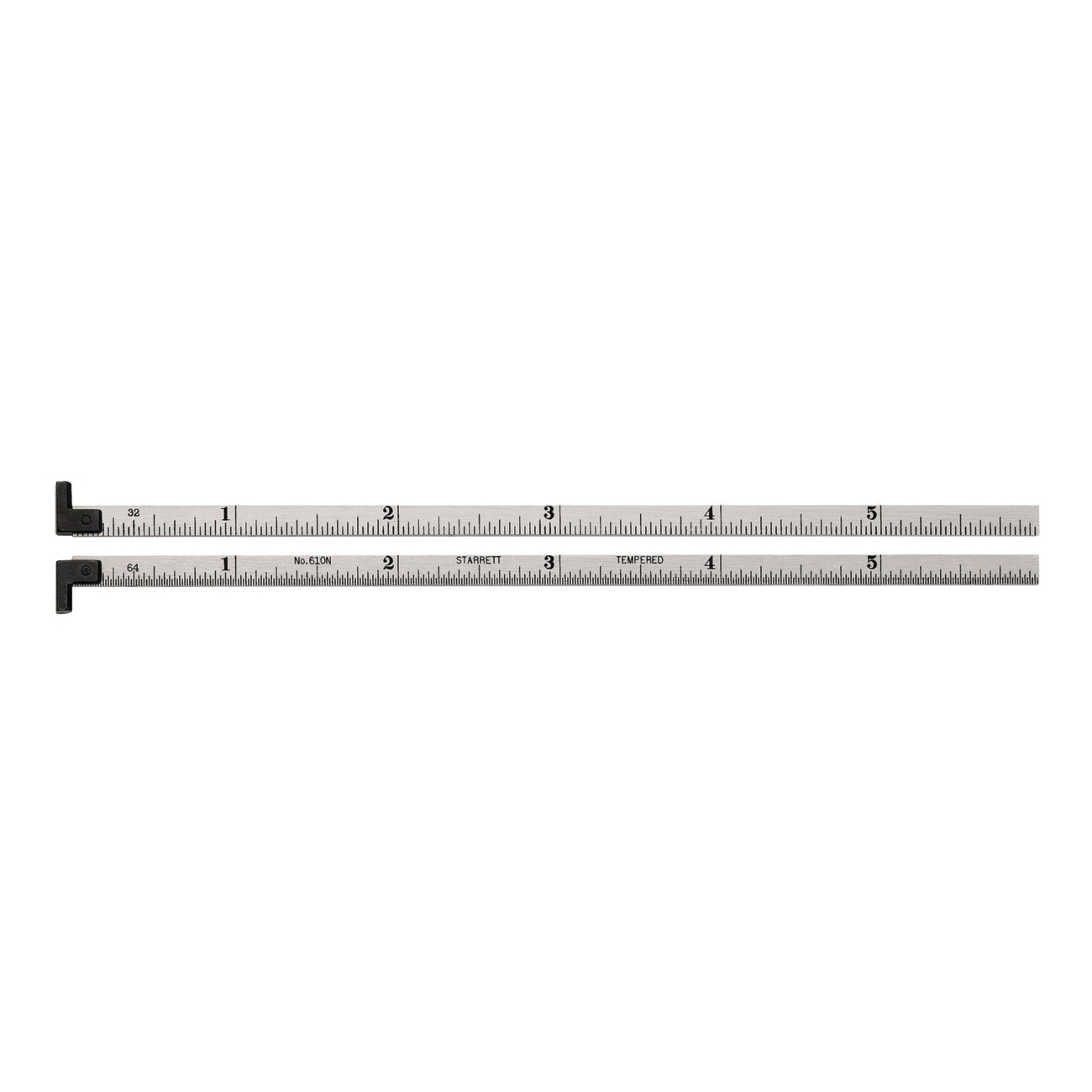

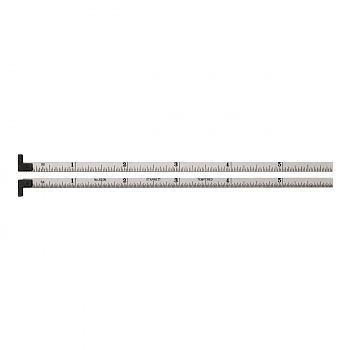

Starrett® Narrow Rule, 6 in Length, 3/16 in Width, 3/64 in Thickness, Measuring System: Imperial, Graduations: #10 - 32nds One Side and 64ths on Reverse Side, Tempered Spring Steel, Regular Steel

• Features

• Machine-divided rules provide uniformity of line width and depth
• Graduations are generally deeper than cheaper, photoengraved rules and will last longer
• The numbering size and style is distinctive and more readable than ordinary rules
• Quick reading figures are furnished with finer graduations for easier counting
• No-glare satin chrome finish for easier reading and rust resistance
• Ground square on both ends provides better efficiency through the ability to read from either end on all edges
• Advanced, staggered graduations when reading lines, it is much easier to count lines of differing lengths than those that resemble a comb
• Graduations are staggered in a height pattern that makes reading easy
• Features single row of in figures
• Narrow blade [only 3/16 in (4.8 mm) wide] which permits measurements through holes as small as 7/32 in (5.5 mm) dia

Specifications

Documents

• Full Engineering Drawing
