MCMASTER-CARR® MCM 5182K119

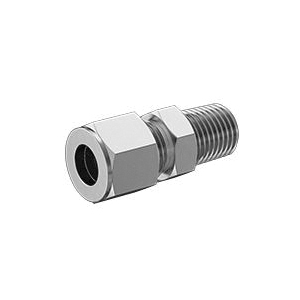

MCMASTER-CARR® 5182K119 Adapter Straight Yor-Lok Fitting, 3/8 x 1/4 in, Yor-Lok x MNPT, 316 Stainless Steel

UNSPSC: 40171700
Manufacturer PN: 5182K119
$36.30 EA
In stock (23)
QTY:


MCMASTER-CARR® Yor-Lok Fitting, Adapter Straight, 3/8 x 1/4 in Nominal, Yor-Lok x MNPT End Style, 0.035 in Thickness, 1-9/16 in Length, 2500 psi Pressure, 316 Stainless Steel, -420 to 1200 deg F

  • Features

  • A nut with two sleeves (ferrules) gives these fittings extra gripping power
  • The sleeves bite into tubing as you tighten the nut, creating a strong seal
  • Also known as instrumentation fittings, they are made to tight tolerances for use in high precision applications
  • They are compatible with Swagelok®, Let-Lok and A-Lok fittings

Specifications

Type Adapter Straight
Nominal Size 3/8 x 1/4 in
End Style Yor-Lok x MNPT
Thickness 0.035 in
Length 1-9/16 in
