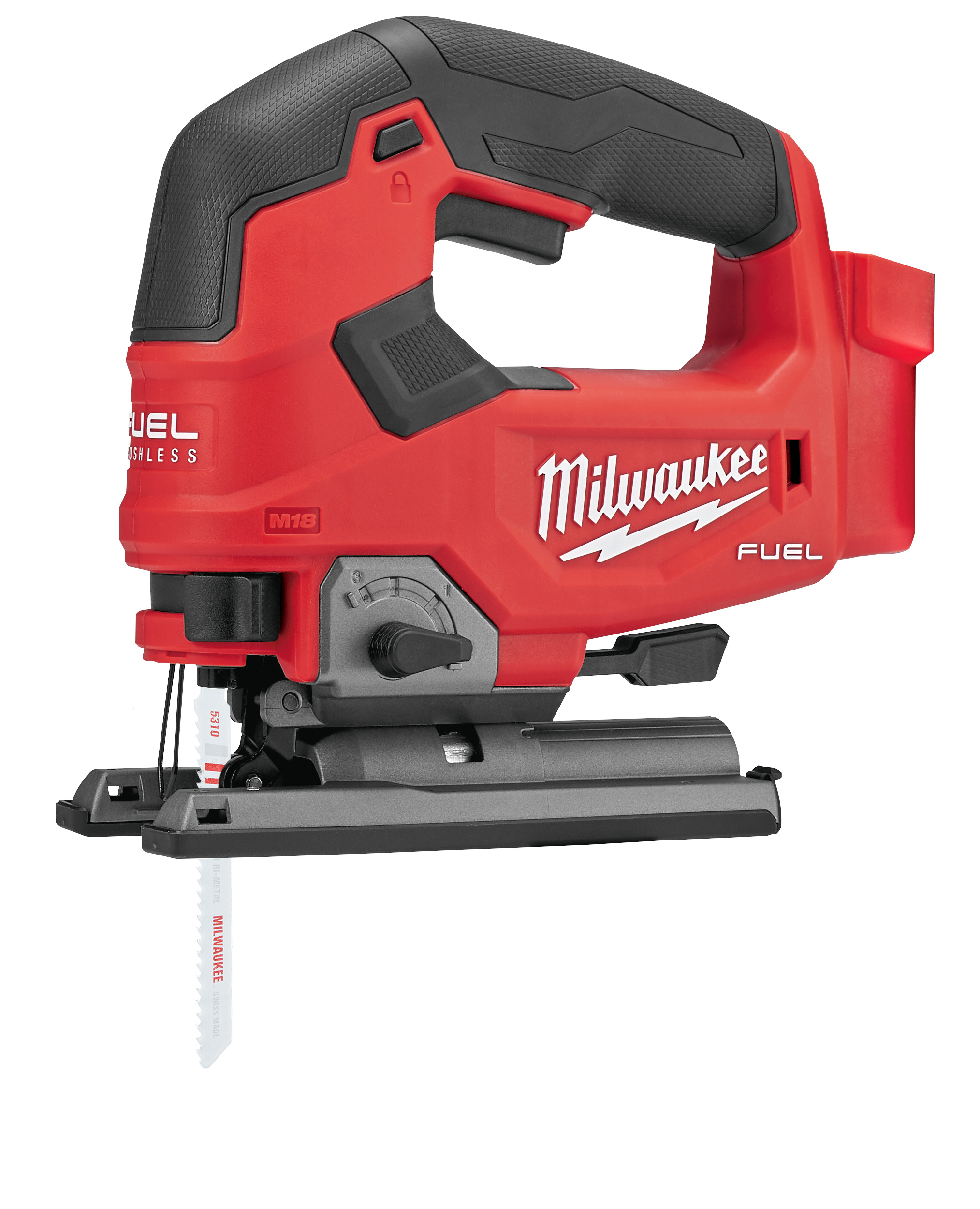

Milwaukee® MILW 2737-20

Milwaukee® Cordless Jig Saw, Series: M18 FUEL™, Cutting Capacity: 5-1/2 in, Bevel Capacity: 45 deg, 1 in Stroke Length, 0 to 3500 spm Strokes per Minute, For Blade Shank Type: T-Shank, 18 VDC, REDLITHIUM™ Battery, 5 Ah Battery, Battery Included: No, Glass Filled Nylon Housing Material, D-Handle Handle, Black/Red, Electronic/Variable Speed Control, 9.13 in Overall Length, 8.6 in H x 3.2 in W Dimensions

• Features

• POWERSTATE™ brushless motor increased spm and the power to cut hard materials, including hardwoods and metals
• REDLITHIUM™ battery technology superior pack construction, electronics and performance deliver more work per charge and more work over pack life than any battery on the market
• 4-position orbital cutting provides versatility for application specific cutting
• ON/OFF cut line blower keeps the cut line clear of debris, and allows user to turn off blower when using dust extraction
• Accepts T-shank jig saw blades
• REDLINK™ PLUS™ intelligence - the most advanced system of cordless power tool electronics provides optimized performance and overload protection using total system communication between tool, battery and charger
• Variable speed ranges between 0 and 3500 spm, providing precise control for clean cuts with less chipping
• Toolless shoe bevel with positive stops allows for quick and accurate shoe adjustment with detents at 0, 15, 30 and 45 deg
• LED light illuminates the cut line
• Includes non-marring shoe cover for protection of finished surfaces

Specifications

Documents

• Line Drawing

• Owners/user Manual
