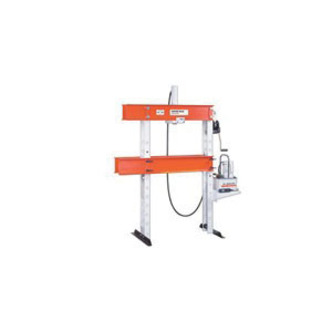

Power Team SPX SPA2514
Power Team SPA2514 SP Series Shop Press, 25 ton Capacity, 43 in L x 28 in W Base, 14-1/4 in L Stroke, H Frame Frame, 58 in H, PA6 1-Speed Air Pump, 10000 psi Pressure
Invoice description:
Press Air 25 Ton 1.29.8 In/min Press Air 25 Ton 1.29.8in/min
Factory Order
Power Team Shop Press, Series: SP Series, 25 ton Capacity, 43 in Base Length, 28 in Base Width, 58 in Height, PA6 1-Speed Air Pump, 14-1/4 in Stroke Length, 10000 psi Pressure, H Frame Frame, 43 x 28 in Working Space, 9.8 in/min Speed
Features
- Cylinder can be mounted on frame extension to handle jobs which wont fit between uprights
- Off-center pressing loads of full capacity can be applied across entire width of frame
- Press bed height easily adjustable with winch
- Bed will not drop when handle is released
Specifications
Base Length43 in
Base Width28 in
Capacity25 ton
Frame TypeH Frame
Height58 in
Pressure Rating10000 psi
Pump TypePA6 1-Speed Air
SeriesSP Series
Speed9.8 in/min
Stroke Length14-1/4 in
Working Space43 x 28 in
Additional Information
IncludesHigh Density Polyethylene Reservoir, C2514C Single-Acting Cylinder, 2-Way Foot Valve, Hydraulic Hoses And Fittings
Line Drawing
