Mitutoyo MTI 129-132

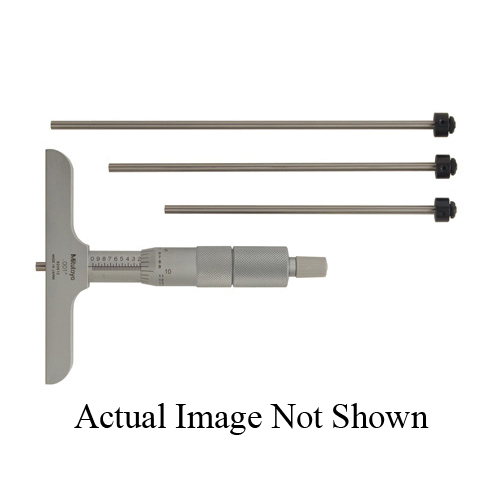

Mitutoyo 129-132 Imperial Interchangeable Rod Depth Micrometer, 0 to 6 in, Graduations: 0.001 in, Hardened Steel, Satin Chrome
UPC: 603908055112
UNSPSC:
41111601
Manufacturer PN: 129-132
$354.58 EA
Factory OrderEstimated to ship in 16 days
Mitutoyo Depth Micrometer, Imperial Interchangeable Rod, Series: 129, 0 to 6 in, +/-0.00012 in Accuracy, Graduations: 0.001 in, 0.00005 in Resolution, Flat Anvil, Flat Spindle, 0.157 in Spindle Dia, Ratchet Thimble, Hardened Steel, Satin Chrome, 4 in L x 0.63 in W
Features
- 4 mm measuring rod
- This type uses interchangeable rods to enable wide range measurement
- Measuring rod lock
- Ratchet stop provides constant measuring force
- The rod length can be adjusted in 1 in or 25 mm increments
- Supplied in fitted plastic case
- Measuring rod clamp
Specifications
Accuracy+/-0.00012 in
Anvil TypeFlat
Dimensions4 in L x 0.63 in W
FinishSatin Chrome
Graduations0.001 in
MaterialHardened Steel
Measuring Range0 to 6 in
Resolution0.00005 in
Series129
Spindle Diameter0.157 in
Spindle TypeFlat
Thimble TypeRatchet
TypeImperial Interchangeable Rod
