Sandvik Coromant SANC 5732804

Sandvik Coromant 5732804 T-Max Q-Cut Parting Insert, ANSI Code: L151.2-300 12-5F 235, 30 L151.2 Insert, Material Grade: M, P, S, 0.1181 in W Cutting, 12 deg Lead Angle, Left Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: 235

UNSPSC:
Manufacturer PN: 5732804
$24.82 EA
Factory Order
Estimated to ship in 7 days
QTY:


Sandvik Coromant Parting Insert, Series: T-Max Q-Cut, L151.2 Insert, 30 Insert, 0.1181 in Cutting Width, 12 deg Lead Angle, Left Hand Lead Angle Direction, 7 deg Relief Angle, 0.2672 in Thickness, 0.228 in Length, 5F Chipbreaker, 0.004 in Corner Radius, Manufacturers Grade: 235, ANSI Code: L151.2-300 12-5F 235, ISO Code: L151.2-300 12-5F 235, Left Hand, Carbide, CVD-TiCN+TiN Coated, Material Grade: M, P, S

  • Features

  • Dedicated geometries and grades for all materials
  • V-clamped 1-edged insert for good stability

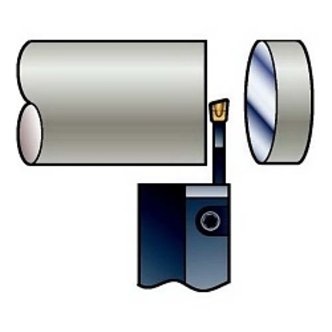

  • For long overhangs and parting off big components
ApplicationFinishing Applications
