Bussmann BUSS AGC-30

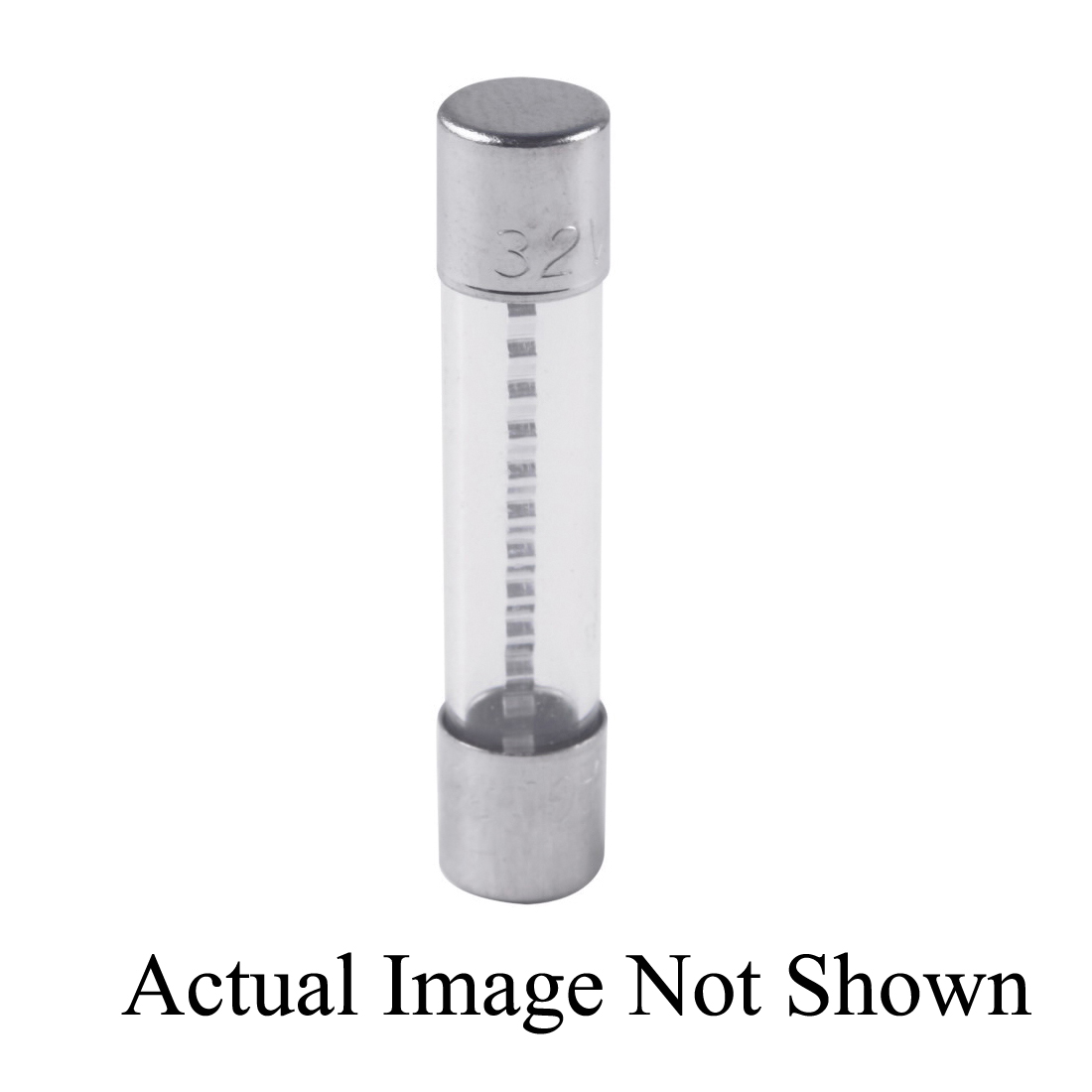

Bussmann AGC-30 Small Dimension Fast Acting Fuse, 30 A, 32 VAC, 1 kA Interrupt, Cylindrical Body
In stock
(31)
Bussmann Fast Acting Fuse, Small Dimension, Series: AGC, Non-Indicating, Non-Rejection, 30 A, 32 VAC, 1 kA Interrupt, 60 min, 120 s Response, Ferrule Terminal, Clip/Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body
Features
- 1 kA at 32 VAC interrupt rating
- 60 min maximum at 135%, 120 s maximum at 200%
- 1 kA at 32 VAC interrupt rating
- 60 min maximum at 135%, 120 s maximum at 200% response time
Specifications
ApplicationElectronic Circuit Applications
Amperage Rating30 A
Body Size1/4 in Dia x 1-1/4 in L
Body TypeCylindrical
ElementSingle
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating1 kA
MaterialGlass
Mounting TypeClip/Holder
Rejection/Non-RejectionNon-Rejection
Response Time60 min, 120 s
SeriesAGC
Terminal TypeFerrule
TypeSmall Dimension
Voltage Rating32 VAC
Specification Sheet
