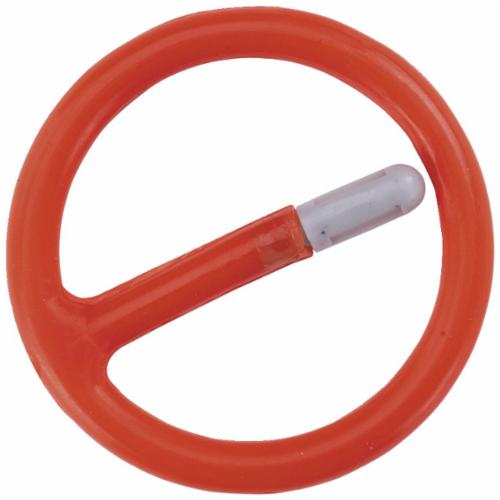

Proto PRO JRR07523

Proto Retaining Ring, Crush Gauge, 3/4 in Drive, 1-5/8 in Overall Length, For Use with: Impact Socket, Resin/Steel, Plastic Coated, Red, 3/16 in H x 1-5/8 in W

• Features

• Retaining rings are used to help secure sockets onto drive tools
• They are not intended to bear any load
• The rotational forces are between the drive tool and the socket
• Designed with a resin crush gauge to help identify when to replace worn sockets
• The resin crush gauge on the pin helps indicate when a socket is excessively worn and should be replaced
• Drive tool and socket should line up when in use and should not pinch the crush gauge
• Cracked sockets and or worn drive tools cause each other to turn excessively in relation to each other
• This action pinches the small fin or the crush gauge on these retaining rings
• If the crush gauge is pinched, it is an indication that the socket and or the drive tool need to be replaced
• 1-piece construction, no loose parts
