Campbell CAM 5410405

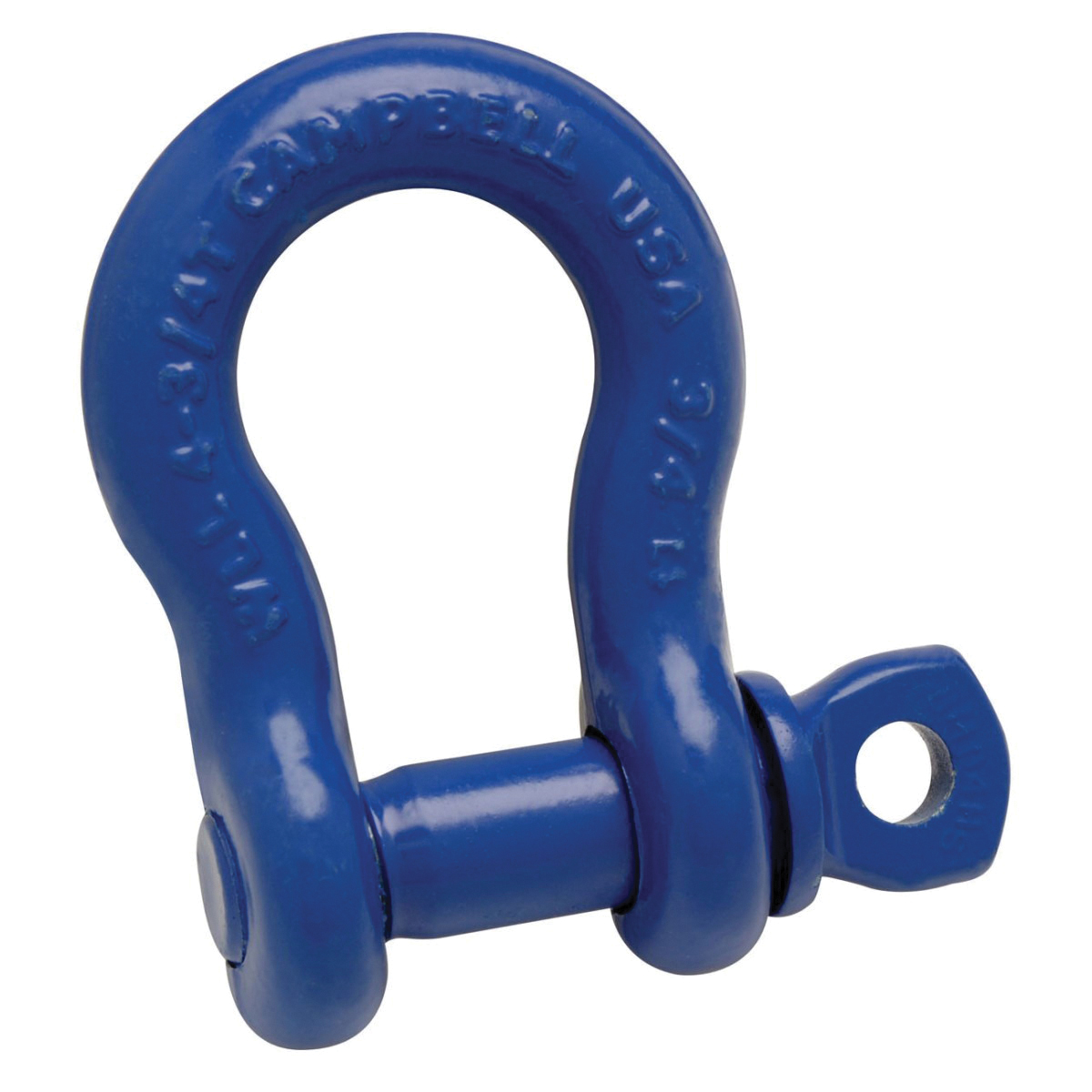

Campbell 5410405 C-419-S Anchor Shackle, 1000 lb Load, 1/4 in, 3/8 in Dia Screw Pin, Painted
Invoice description:
Anchor Shackle,screw,1/4
In stock
(2)
Campbell Anchor Shackle, Series: C-419-S, 1000 lb, 1/4 in, 3/8 in Pin Dia, Screw Pin, 1-1/8 in Inner Length, 25/32 in Inner Width, 15/32 in Opening, 11/16 in Eye Outer Size, Drop Forged Carbon Steel Body, Heat Treated Alloy Steel Pin, Painted
Features
- Self colored (painted blue)
- Working load limit, size, manufacture name, date code and USA permanently marked on each shackle
- Statistically tested for impact resistance, tensile strength, hardness, ductility and fatigue
- 419 series shackles meet or exceed all manufacturing requirements of the ASME B30.26 "rigging hardware", these include the material ductility requirement (Section 26-1.1.2), the design factor requirement (Section 26.1.2), the identification requirement (Section 26-1.5.1) and the effective temperature range (Section 26-1.6.1), the shackles can be proof tested in accordance with Section 26-1.4
- 6 : 1 design factor
- Pins and bolts are heat treated and made of alloy steel
Specifications
Body MaterialDrop Forged Carbon Steel
Eye Outer Size11/16 in
FinishPainted
Inner Length1-1/8 in
Inner Width25/32 in
Load Capacity1000 lb
Opening Size15/32 in
Pin Diameter3/8 in
Pin MaterialHeat Treated Alloy Steel
Pin TypeScrew
SeriesC-419-S
Size1/4 in
Additional Information
Standards/ApprovalFederal Specification RR-C-271, Type IVA, Grade A, Class 2|ASME B30.26
Country of OriginUS
