Midland Industries MIDM 46934

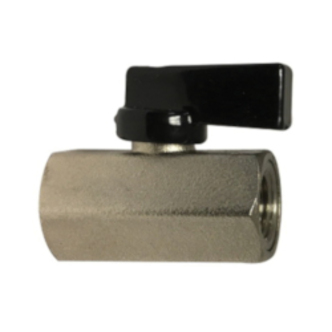

Midland Industries 46934 Economy Miniature Ball Valve, 1/8 in Nominal, FIP End Style, Brass Body, FKM O-Ring/Stem/Seal Softgoods, Import
Invoice description:
Valve Ball Mintr 1/8in F Ip Brs 450psi Midland Industries 46934 Economy Miniature Ball Valve, 1/8 In Nominal, Fip End Style, Brass Body, Fkm O-ring/stem/seal Softgoods, Import
In stock
(27)
Midland Industries Miniature Ball Valve, Economy, 1/8 in Nominal, FIP, 450 psi, 356 deg F at 142 psi/212 deg F at 355 psi, Media: Air, Oil and Water, Nickel Plated Brass Ball, Brass Body, Highly Inert PTFE Seat Trim, FKM O-Ring/Stem/Seal, Import
Features
- Blow-out proof stem for safety
- 1/4 turn instantaneous on-off operation
- Quarter-turn handle design
- Non-adjusting FKM o-ring stem seal design never needs tightening
- Good for propane, Gas and diesel
- Not good for steam
Specifications
ApplicationTight, Confined Areas, Or When Routing Aesthetics Are Desired Include Instrumentation, Gas Sampling Systems, High Pressure Gauges, Test Stands, Hydraulic and Pneumatic Service Lines on Capital Equipment
Ball MaterialNickel Plated Brass
Body MaterialBrass
Domestic/ImportImport
End StyleFIP
MediaAir, Oil and Water
Nominal Size1/8 in
Pressure Rating450 psi
Softgoods MaterialFKM O-Ring/Stem/Seal
Temperature Rating356 deg F at 142 psi/212 deg F at 355 psi
Trim MaterialHighly Inert PTFE Seat
TypeEconomy
Additional Information
Country of OriginCN
