Standard Abrasives SA 710190
Standard Abrasives 7000121790 CM-9 Threaded Cartridge Roll, 0.12 in Dia Pilot x 1 in L Pilot, 1/4 in Dia x 1-1/4 in L Mandrel Shank, 2-3/4 in OAL
Invoice description:
Mandrel 1/8x1x1/4x1-1/4 X2-3/4 Cm-9
In stock
(3)
Standard Abrasives, 7000121790, Cartridge Roll, Threaded, Series: CM-9, 0.12 in Pilot Diameter, 1 in Pilot Length, 1/4 in Mandrel Shank Diameter, 1-1/4 in Mandrel Shank Length, 2-3/4 in Overall Length
Features

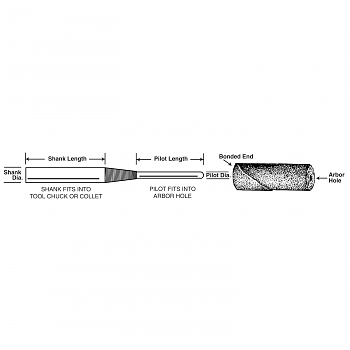

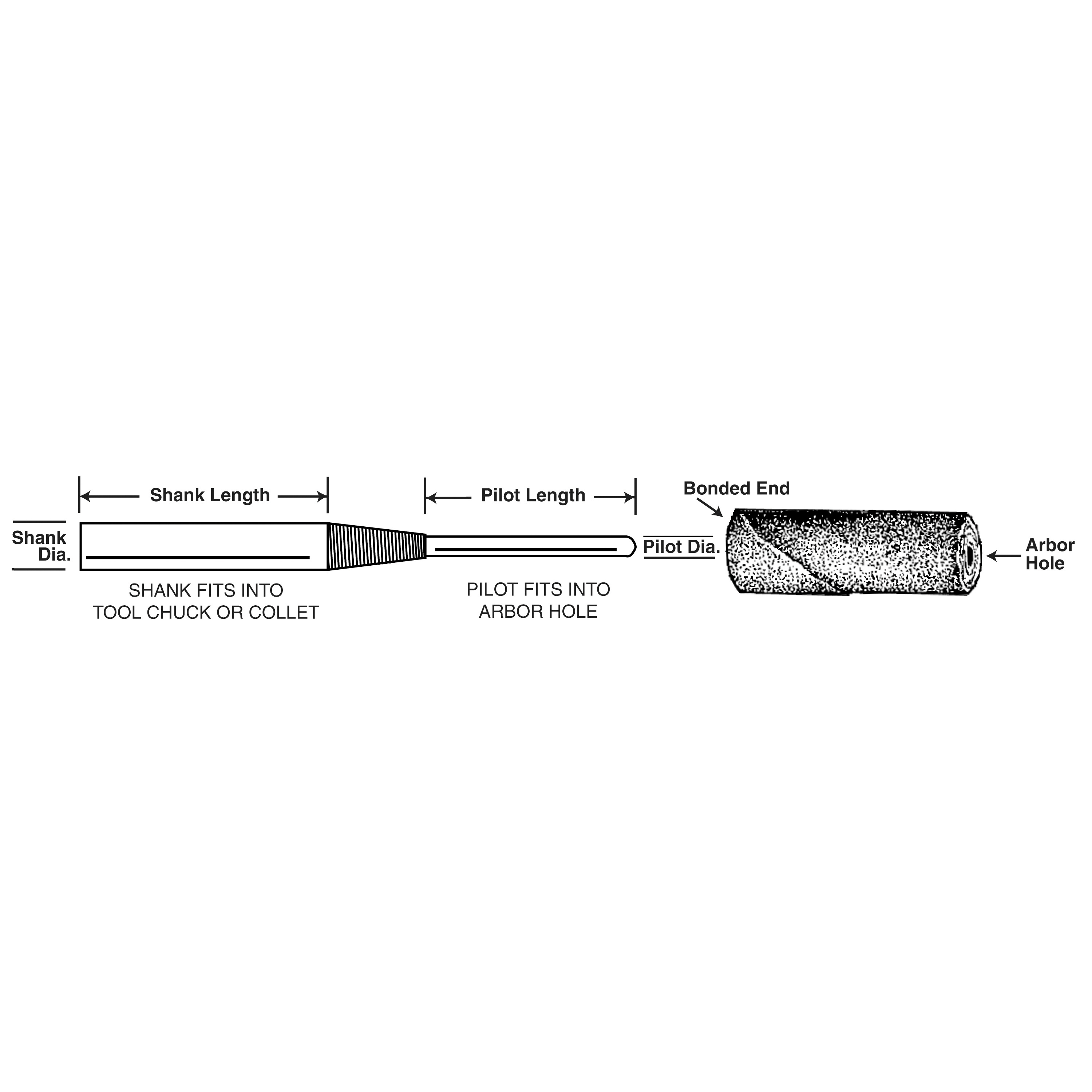

- Fits all Standard Abrasives straight, full tapered and half tapered cartridge rolls
- Shank of the mandrel is secured into the collet assembly or drill chuck of a rotary power tool
- Mandrel enables access to tight spaces with a cartridge roll
- Various pilot diameters and lengths to fit different cartridge rolls
- Made of plated steel for enhanced durability
- The mandrels enhance usability of Standard Abrasives cartridge rolls by being the tool attachment that links the cartridge roll to the power tool
- Adding length to the cartridge roll helps it reach even further into those seemingly inaccessible nooks and crannies

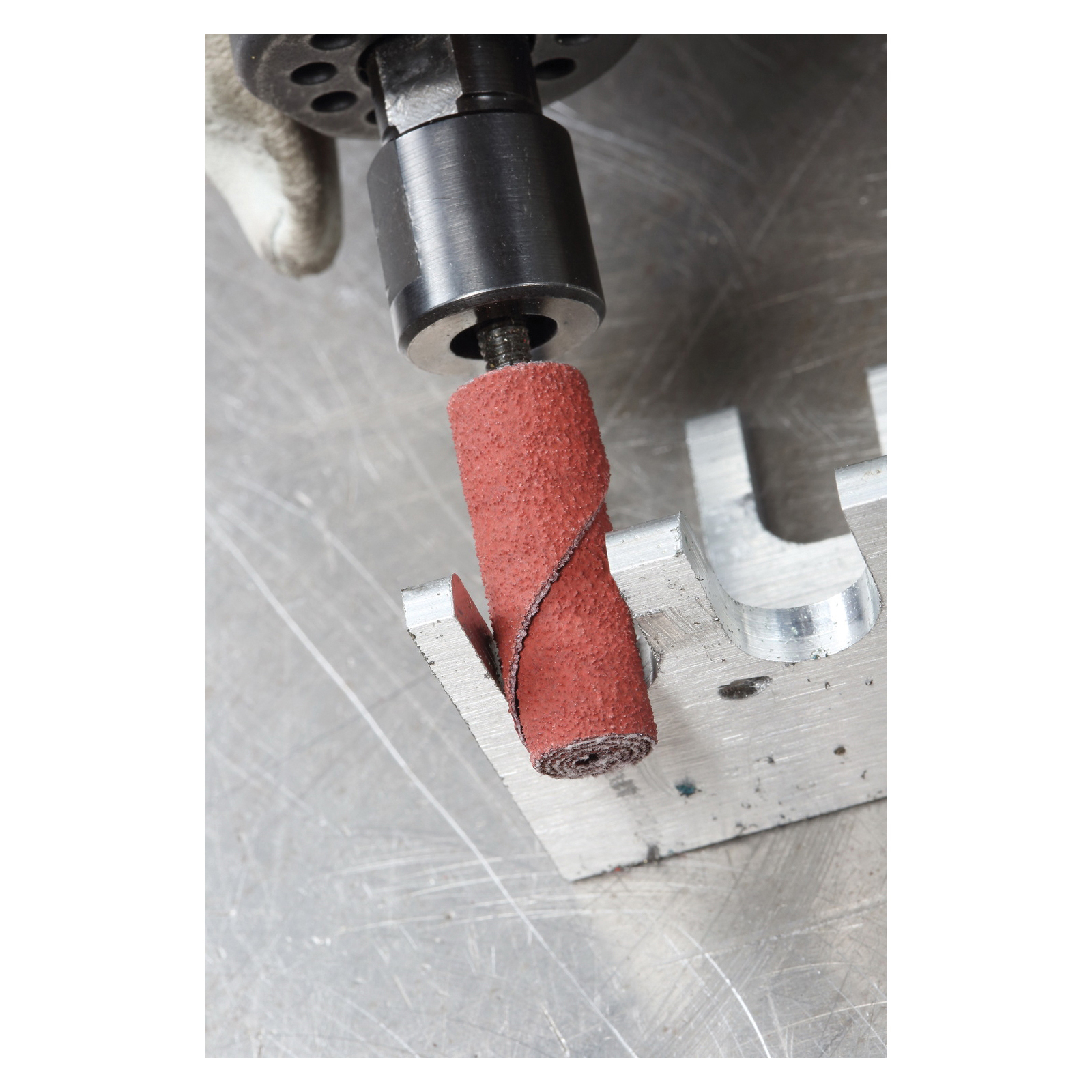

- Designed to help users get inside diameters and holes to swiftly grind and finish
Specifications
Mandrel Shank Diameter1/4 in
Mandrel Shank Length1-1/4 in
Overall Length2-3/4 in
Pilot Diameter0.12 in
Pilot Length1 in
SeriesCM-9
TypeThreaded
Additional Information
Country of OriginCN
