Precision Twist Drill CDC 3

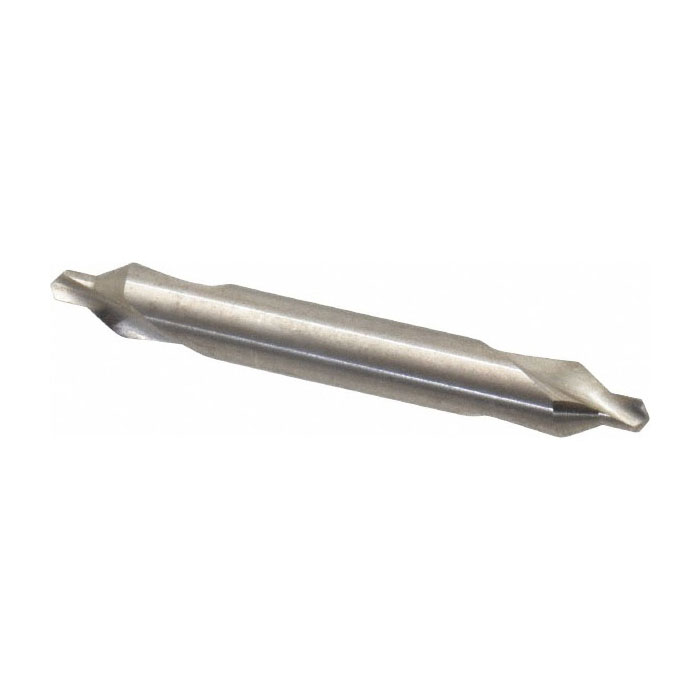

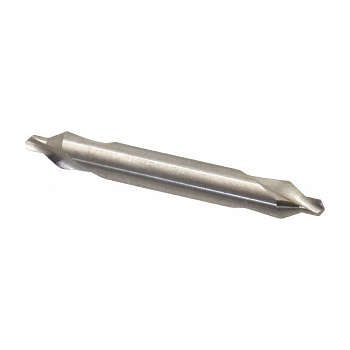

Precision Twist Drill 6001217 76HA Center Drill Regular length Combined Drill and Countersink, 7/64 in Drill - Fraction, 0.1094 in Drill - Decimal Inch, 60 deg Included Angle, HSS, Bright
Invoice description:
A221n3 Shrt Cntr Drl 60 Deg Hss-e Bright
UPC: 086071976031
UNSPSC:
27112812
Manufacturer PN: 6001217
$10.09 EA
Factory OrderEstimated to ship in 8 days
Precision Twist Drill Combined Drill and Countersink, Center Drill Regular length, Series: 76HA, 7/64 in Drill Size - Fraction, 0.1094 in Drill Size - Decimal Inch, #3 Point Dia, 1/4 in Body Dia, 2 in Overall Length, 7/64 in Flute Length, 1/4 in Shank, Straight Shank, 60 deg Included Angle, Right Hand Cutting, HSS Cutting Edge, HSS, Bright, Applicable Materials: Aluminum, Cast Iron, Copper, Hardened Steel, Magnesium, Nickel, Stainless Steel, Steel, Synthetic Materials and Titanium
Features
- Bright finish improves chip flow in soft or non-ferrous materials
Specifications
ApplicationFor general purpose applications on both ferrous and nonferrous materials
Applicable MaterialsAluminum, Cast Iron, Copper, Hardened Steel, Magnesium, Nickel, Stainless Steel, Steel, Synthetic Materials and Titanium
Body Diameter1/4 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Size - Decimal Inch0.1094 in
Drill Size - Fraction7/64 in
FinishBright
Flute Length7/64 in
Included Angle60 deg
MaterialHSS
Overall Length2 in
Point Diameter#3
Series76HA
Shank Size1/4 in
Shank TypeStraight
TypeCenter Drill Regular length
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
