TECHNIKS TECN 22711

TECHNIKS 22711 Precision Single End, 3/4 in Arbor, 2-1/2 in OD, CAT40 Taper

UNSPSC: 27112811
Manufacturer PN: 22711
$162.68 EA
Factory Order
Estimated to ship in 10 days
QTY:

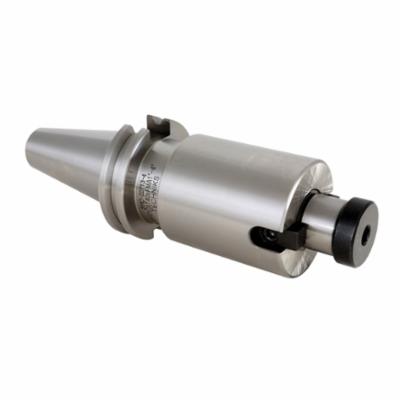

TECHNIKS Face Mill Arbor, Precision Single End, 3/4 in Arbor, 2-1/2 in Outside Dia, CAT40 Taper

  • Features

  • TECHNIKS face mill arbors offer H6 arbor tolerance for less chatter and better tool life
  • Each arbor is lab certified for dimensional accuracy
  • The taper is ground to AT3 tolerance for maximum spindle contact
  • Compatible with all face mills
  • Each holder comes with a complete lab report
  • 8620 Steel

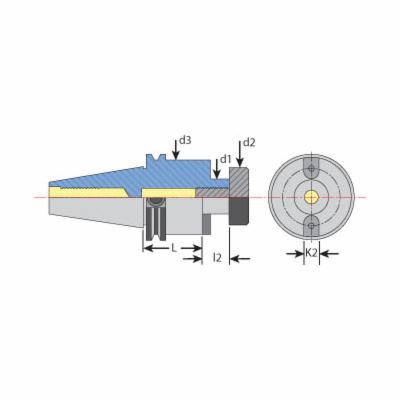

  • 0.88 in arbor screw diameter
  • 0.69 in pilot length
  • 1.245 in face contact gage length
  • 1.37 in gage length

Specifications

ApplicationFor holding face mill cutters for CNC milling
Arbor Size3/4 in
Outside Diameter2-1/2 in
TaperCAT40
TypePrecision Single End
