MMM MIDM 720402

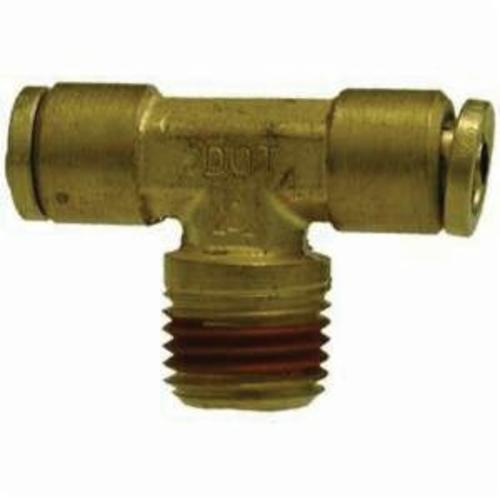

MMM 720402 Tube To Pipe Branch Tee, 1/4 in, Push-In x Push-In x MNPTF, CA377 Brass
Invoice description:
Tee Br Pipe To Tube Tee 1/4in Ca377 Brs Midland Industries 720402 Tube To Pipe Branch Tee, 1/4 In, Push-in X Push-in X Mnptf, Ca377 Brass
Factory Order
MMM Tube To Pipe Branch Tee, Tee Fitting/Connector, 1/4 in Nominal, Push-In x Push-In x MNPTF End Style, 1.7 in Length, 150 psi Pressure, -40 to 200 deg F, CA377 Brass, Forged Method of Manufacture
Features
- Fast assembly - No tools required, simply push tubing in, saves up to 75% of assembly time compared to standard air compression fittings, no loose parts to handle
- Fast disconnect - Hold the collet collar with two fingers and pull out tube
- Reusable - Can be connected and disconnected several times
- Reliable sealing - using recommended tubing, full sealing is guaranteed
- Versatility - Buna-N O'ring standard, viton and others avail, secure tube retention, pulling on tubing only serves to tighten the connection
- Pre-Applied Teflon® based pipe sealant on all male pipe threads, saving customer additional labor
- Full flow design, provides more flow area than conventional fittings with internal tube supports even in the swivels
- DOT fittings are constructed with an all brass captive eyelet which allows for maximum flow
- The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing
- 0.55 in body
Specifications
Fitting/Connector Ty Tee
Nominal Size 1/4 in
End Style Push-In x Push-In x MNPTF
Length 1.7 in
Pressure Rating 150 psi
Additional Information
Country of OriginTW
