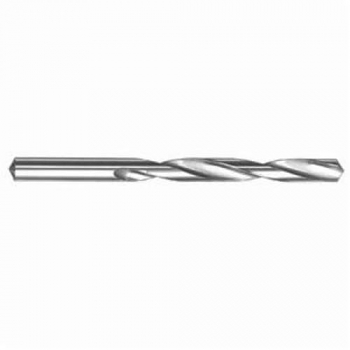

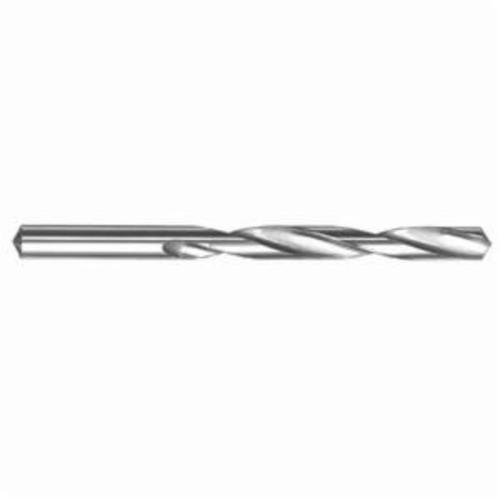

Michigan Drill TRA 300L 11/64

Michigan Drill 300L 11/64 General Purpose Jobber Length Drill Bit, 11/64 in Drill - Fraction, 0.1719 in Drill - Decimal Inch, 118 deg Point, HSS, Bright

UPC: 728012075068
UNSPSC: 23241606
Manufacturer PN: 300L 11/64
$3.28 EA
In stock (5)
QTY:


Michigan Drill Jobber Length Drill Bit, General Purpose, Series: 300L, Imperial, 11/64 in Drill - Fraction, 0.1719 in Drill - Decimal Inch, 3-1/4 in Overall Length, 2-1/8 in Cutting Depth, Spiral Flute, 2-1/8 in Flute Length, 11/64 in Shank, Straight Shank, 118 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Bright, Applicable Materials: Brass, Fiberglass, Hard Rubber, Plastic, Aluminum and Magnesium Alloy

  • Features

  • The open flute design allows the greatest volume of chip removal with high feed rates
  • They are also successfully used in shallow hole drilling of aluminum and magnesium alloys and die cast parts

Specifications

ApplicationShallow Hole Drilling
Applicable MaterialsBrass, Fiberglass, Hard Rubber, Plastic, Aluminum and Magnesium Alloy
Cutting Depth2-1/8 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.1719 in
Drill Size - Fraction11/64 in
FinishBright
Flute Length2-1/8 in
Flute TypeSpiral
MaterialHSS
Overall Length3-1/4 in
Point Angle118 deg
Point TypeConventional
Series300L
Shank Size11/64 in
Shank TypeStraight
TypeGeneral Purpose
