Opto-Matic TRI 30005

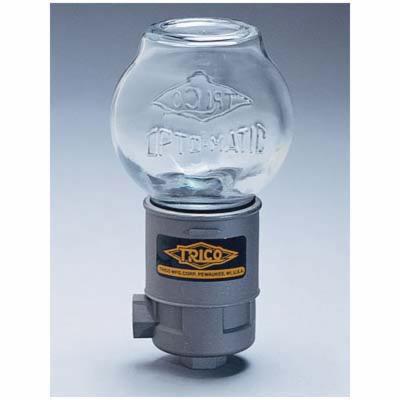

Opto-Matic 30005 Standard Constant Level Oiler, 8 oz, Glass Bowl, 250 deg F

UNSPSC: 24111801
Manufacturer PN: 30005
$135.84 EA
In stock (3)
QTY:


Opto-Matic Constant Level Oiler, Standard, Glass Bowl, 8 oz, 1/4 in NPT, 3-3/16 in Dia, 6-11/16 in Height, 250 deg F Operating, Zinc Plated Components

  • Features

  • One piece glass reservoir ensures proper constant level function
  • Adjustable level setting allows use in many applications
  • Multiple air vent slots provide for proper functioning at all times
  • Large surge chamber helps prevent overflow of oil during machine start-up or shut-down
  • Side and bottom connections for simplified installation
  • Zinc/chromate plated finish
  • Zinc plated steel internal parts
  • Viton o-ring

Specifications

ApplicationBearing housings, Gearboxes, Chemical industry, Mining, Pulp and Paper
Bowl MaterialGlass
Components MaterialZinc Plated
Container Size8 oz
Diameter3-3/16 in
Height6-11/16 in
Operating Temperature250 deg F
Thread Size1/4 in NPT
TypeStandard
