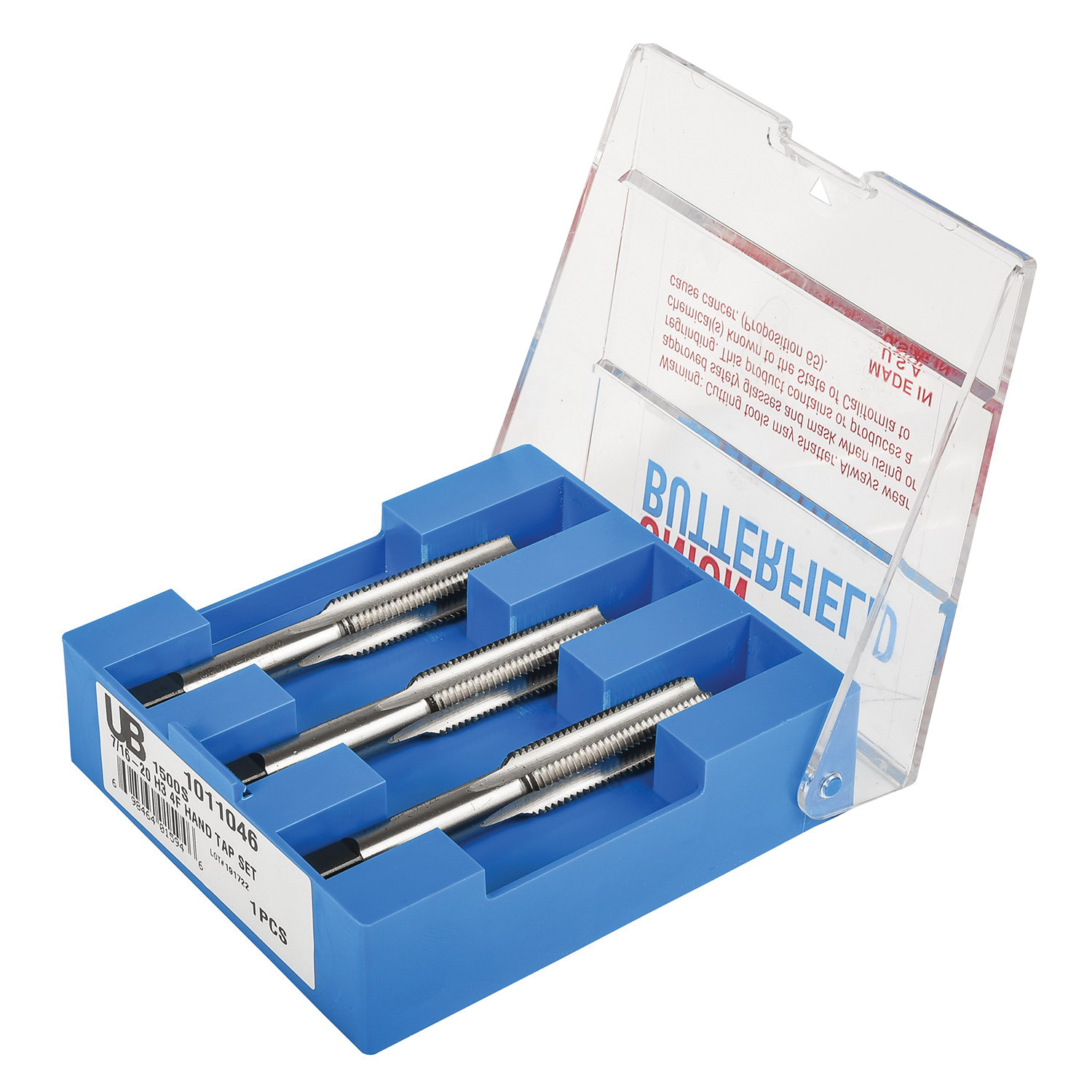

Union Butterfield UTD 1500S 5/16-18

Union Butterfield 6006960 1500S Straight Flute Hand Tap Set, Right Hand Cutting, Bottoming/Plug/Taper Chamfer, H3 Thread Limit

Invoice description: 5/16in X 18 Tpi H3 4 Flt 1500s Hss Brt 3 Pc Set 6007344 6006960

UPC: 698464015892
UNSPSC: 23241615
Manufacturer PN: 6006960
$31.14 ST
Factory Order
Estimated to ship in 7 days
QTY:


Union Butterfield Hand Tap Set, Straight Flute, Series: 1500S, Measurement System: Imperial, 3 Piece, 5/16-18 Size, UNC Thread Standard, 1-1/8 in Thread Length, 2-23/32 in Overall Length, 4 Flutes, Right Hand Cutting Direction, Class of Fit: 2B/3B, 0.318 in Shank Diameter, Bottoming/Plug/Taper Chamfer, H3 Thread Limit, 0.238 in Square, HSS, Bright, Plastic Case Package Type

  • Features

  • The most versatile taps for hand use or machine tapping in a wide variety of materials in through or blind hole applications

Specifications

ApplicationFor general purpose applications
ChamferBottoming/Plug/Taper
Class of Fit2B/3B
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Measurement SystemImperial
Number of Flutes4
Number of Pieces3
Overall Length2-23/32 in
Package TypePlastic Case
Series1500S
Shank Diameter0.318 in
Size5/16-18
Square Size0.238 in
Thread Length1-1/8 in
Thread LimitH3
Thread StandardUNC
TypeStraight Flute

Additional Information

Includes1010025 Taper, 1010028 Plug and 1010032 Bottoming Taps
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
