Williams® WMS EB-2T

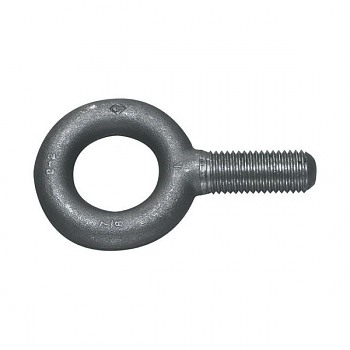

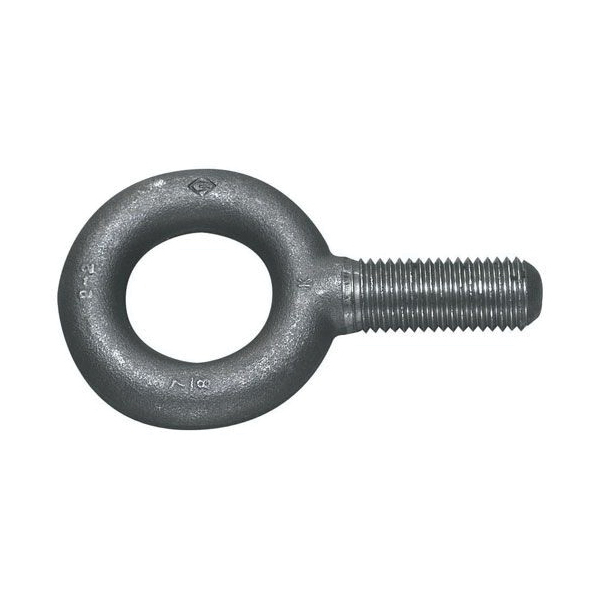

Williams® EB-2T Plain Pattern Eye Bolt, 5/16-18, 1-1/8 in L Shank, Forged Carbon Steel
Williams® Eye Bolt, Plain Pattern, Measurement System: Imperial, 5/16-18 Thread, 1-1/8 in Shank Length, Forged Carbon Steel, 27/32 in ID Eye, UNC Thread, 2-5/8 in Overall Length, 4500 lb Tensile Strength, 2A Grade
Features
- Forged from the best quality carbon steel, hardened and tempered to ensure increased strength and toughness and reduce liability or breakage
- Each lot is tested and inspected to insure conformance to specifications
- Plain pattern eyebolts must never be used to lift an angular load
- Eyebolt shanks should never be undercut or eyebolt shank diameters reduced
- To obtain greatest strength from an eye bolt, it must fit reasonably tight in the hole into which it is screwed to prevent unscrewing due to twist of cable
- Tightness and seating must be checked after initial load
Specifications
Type Plain Pattern
Measurement System Imperial
Diameter - Thread Si 5/16-18
Shank Length 1-1/8 in
Material Forged Carbon Steel
Inside Eye Diameter 27/32 in
Thread Type UNC
