Williams® WMS EB-32T

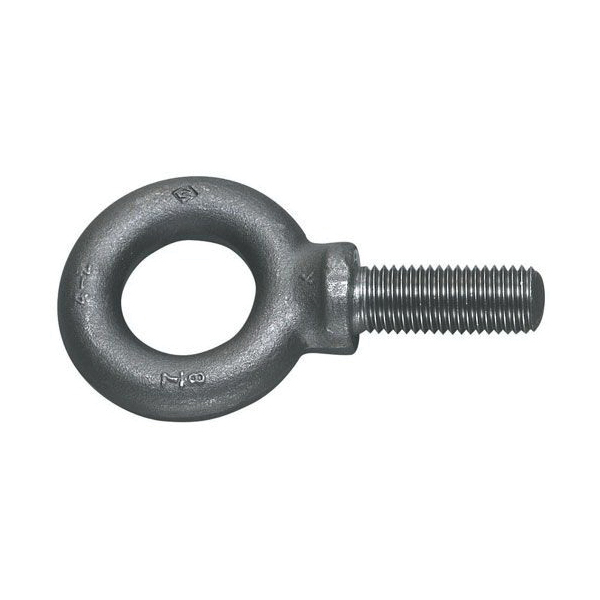

Williams® EB-32T Shoulder Pattern Eye Bolt, 1-1/4-7, 3 in L Shank, Forged Carbon Steel

UPC: 662459307279
UNSPSC: 31161610
Manufacturer PN: EB-32T
$56.22 EA
In stock (3)
QTY:


Williams® Eye Bolt, Shoulder Pattern, Measurement System: Imperial, 1-1/4-7 Thread, 3 in Shank Length, Forged Carbon Steel, 2-1/8 in ID Eye, UNC Thread, 8-3/8 in Overall Length, 75000 lb Tensile Strength, 2A Grade

  • Features

  • Forged from the best quality carbon steel, hardened and tempered to ensure increased strength and toughness and reduce liability or breakage
  • Each lot is tested and inspected to insure conformance to specifications
  • Shoulder eye bolts must be properly seated (should bear firmly against the mating part) otherwise the working loads must be reduced substantially
  • Eyebolt shanks should never be undercut or eyebolt shank diameters reduced
  • A steel washer or spacer may be required for proper seating
  • To obtain greatest strength from an eye bolt, it must fit reasonably tight in the hole into which it is screwed to prevent unscrewing due to twist of cable
  • Tightness and seating must be checked after initial load

Specifications

Type Shoulder Pattern
Measurement System Imperial
Diameter - Thread Si 1-1/4-7
Shank Length 3 in
Material Forged Carbon Steel
Inside Eye Diameter 2-1/8 in
Thread Type UNC
