YG-1 YG1 0241L

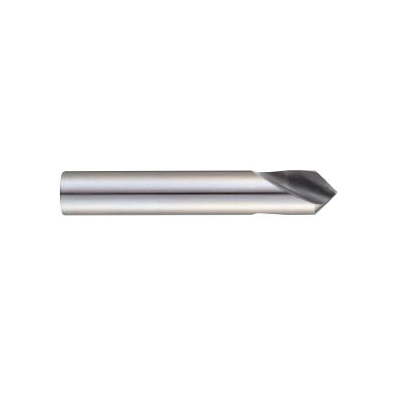

YG-1 0241L D2N90 NC Spotting Drill, 3/8 in Dia, 3-1/2 in OAL, M42 HSS-Co 8, Uncoated
Invoice description:
3/8 (.375) 90deg Cobalt Spot Drill
Factory Order
YG-1 NC Spotting Drill, Series: D2N90, 3/8 in Dia, 3-1/2 in Overall Length, 0.827 in Cutting Depth, Spiral Flute, 0.827 in Flute Length, 3/8 in Shank, Straight Shank, 90 deg Point, Right Hand Cutting, M42 HSS-Co 8 Cutting Edge, M42 HSS-Co 8, Uncoated, Applicable Materials: Carbon Steel, Alloy Steel, Aluminum, Stainless Steel, Mild Steel and Bronze
Features
- A larger diameter in respect to the subsequent drilling tool permit to obtain the centering and chamfering simultaneously
Specifications
ApplicationFor use with NC machines
Applicable MaterialsCarbon Steel, Alloy Steel, Aluminum, Stainless Steel, Mild Steel and Bronze
Cutting Depth0.827 in
Cutting DirectionRight Hand
Cutting Edge MaterialM42 HSS-Co 8
Diameter3/8 in
FinishUncoated
Flute Length0.827 in
Flute TypeSpiral
MaterialM42 HSS-Co 8
Overall Length3-1/2 in
Point Angle90 deg
SeriesD2N90
Shank Size3/8 in
Shank TypeStraight
