Cleveland CLEVELAND C23819

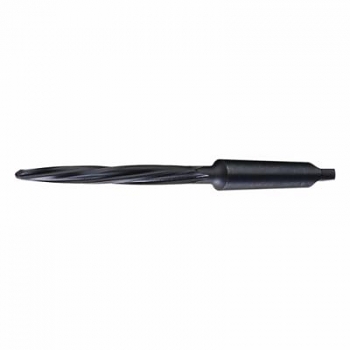

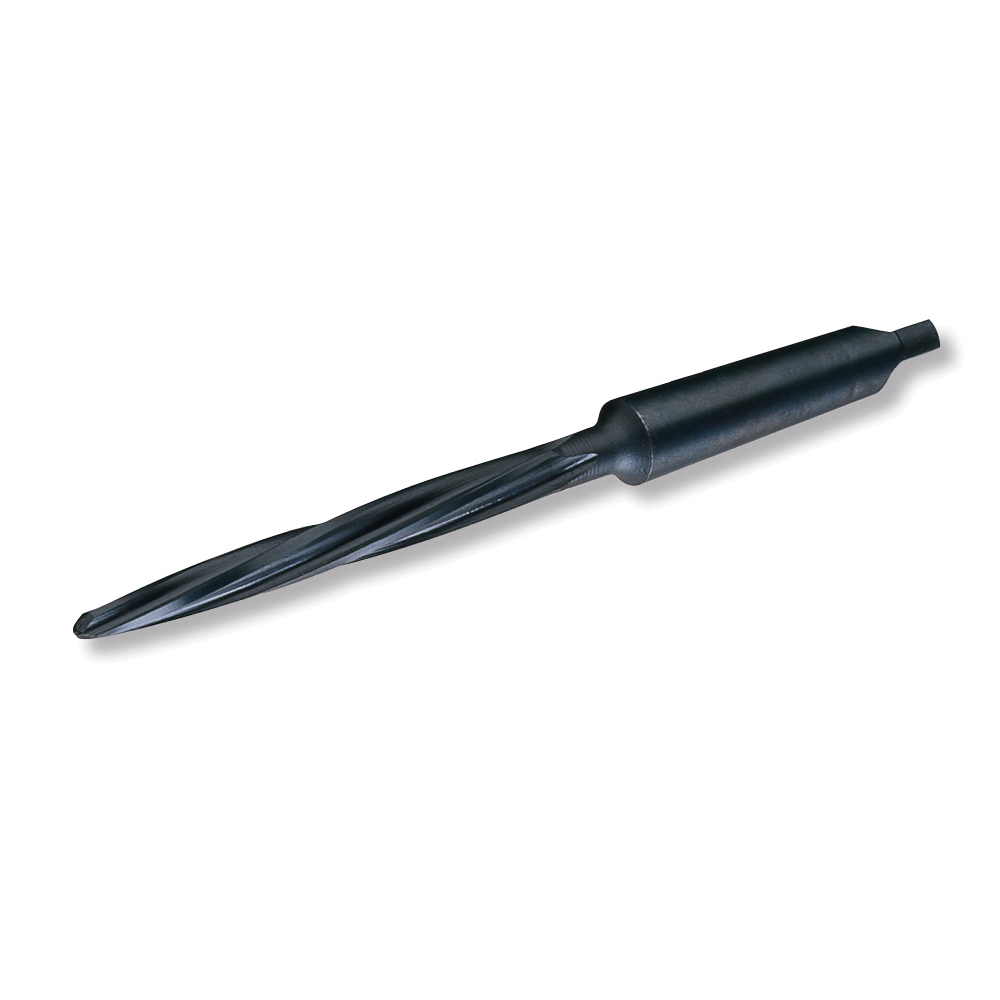

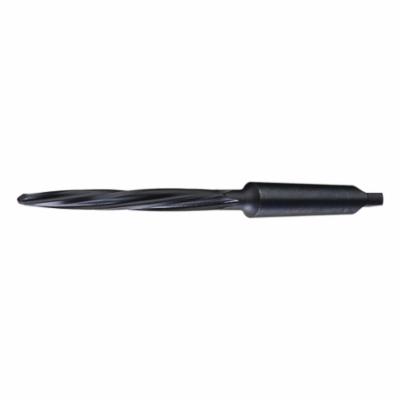

Cleveland C23819 616 Heavy Duty Bridge Reamer, 7/8 in Dia x 12 in L, #3 Morse Taper Shank, Left Spiral Flute

Invoice description: 7/8 Ts Bridge Reamer

UPC: 697334238195
UNSPSC: 27111954
Manufacturer PN: C23819
$297.90 EA
Factory Order
Estimated to ship in 8 days
QTY:


Cleveland Bridge Reamer, Heavy Duty, Series: 616, 7/8 in Diameter, 12 in Overall Length, 0.609 in Point, Sharp Point, #3 Morse Taper Shank, 4 Flutes, Left Spiral Flute, 7-3/8 in Flute Length, HSS, Black Oxide, Right Hand Cutting Direction, Applicable Materials: Cast Iron, Carbon Steel and Structural Steel

  • Features

  • Designed for hard service, especially suited for use in structural iron or steel bridgework and ship construction
  • Left hand helix, right hand cut for difficult materials and applications
  • Sharp point and long taper for easy entry in badly misaligned holes
  • Commonly used in electric and pneumatic portable equipment
  • Black oxide surface finish increases wear resistance and adds lubricity, improving chip flow

Specifications

Applicable MaterialsCast Iron, Carbon Steel and Structural Steel
Cutting DirectionRight Hand
Diameter7/8 in
FinishBlack Oxide
Flute Length7-3/8 in
Flute TypeLeft Spiral
MaterialHSS
Number of Flutes4
Overall Length12 in
Point Size0.609 in
Point TypeSharp
Series616
Shank Type#3 Morse Taper
TypeHeavy Duty

Additional Information

Country of OriginUS
