CM CM M648AP

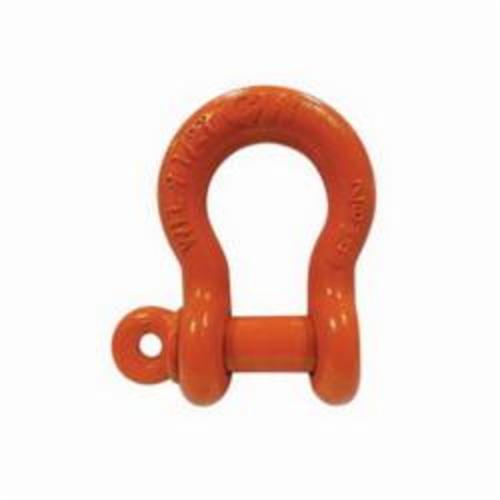

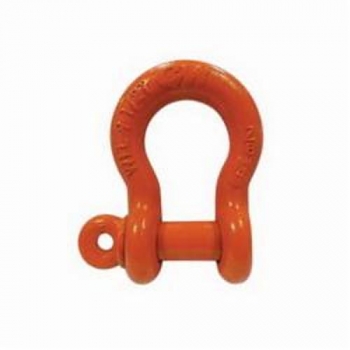

CM M648AP Anchor Shackle, 2 ton Load, 3/8 in, 0.438 in Dia Screw Pin, Orange Powder Coated

Invoice description: Shackle Screw Pin 3/8"

UPC: 043927465262
UNSPSC: 24101641
Manufacturer PN: M648AP
$11.76 EA
Factory Order
Estimated to ship in 13 days
QTY:


CM Anchor Shackle, 2 ton Load, 3/8 in Size, 0.438 in Pin Diameter, Screw Pin, 1.437 in Inner Length, 0.937 in Inner Width, 0.656 in Opening, 1-1/8 in Eye Outer, Alloy Steel Body, Alloy Steel Pin, Orange Powder Coated

  • Features

  • Made of special bar quality (SBQ) steel having fine grain, reduced sulfur and phosphorus
  • Shackles show major deformation before failure
  • Working load limit and traceability codes shown as permanent markings on body
  • All shackles have alloy quenched and tempered pins
  • Anchor shackles can be side loaded or used for multiple connections
  • Special products engineering available to fit your special lifting, tie down and pulling needs
  • 5:1 design factor

Specifications

Body MaterialAlloy Steel
Eye Outer Size1-1/8 in
FinishOrange Powder Coated
Inner Length1.437 in
Inner Width0.937 in
Load Capacity2 ton
Opening Size0.656 in
Pin Diameter0.438 in
Pin MaterialAlloy Steel
Pin TypeScrew
Size3/8 in

Additional Information

Standards/ApprovalFederal Specification RR-C-271D
Country of OriginUS
