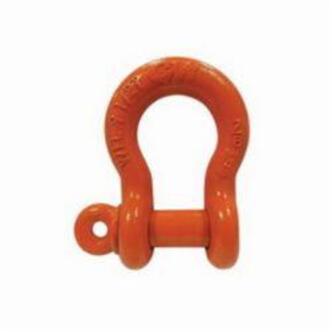

CM M657AP Anchor Shackle, 25 ton Load, 11/2 in, 1-5/8 in Dia Screw Pin, Orange Powder Coated
CM Anchor Shackle, 25 ton Load, 11/2 in Size, 1-5/8 in Pin Diameter, Screw Pin, 5-3/4 in Inner Length, 3-3/8 in Inner Width, 2-3/8 in Opening, 3-3/4 in Eye Outer, Alloy Steel Body, Alloy Steel Pin, Orange Powder Coated
Features
- Made of special bar quality (SBQ) steel having fine grain, reduced sulfur and phosphorus
- Shackles show major deformation before failure
- Working load limit and traceability codes shown as permanent markings on body
- All shackles have alloy quenched and tempered pins
- Anchor shackles can be side loaded or used for multiple connections
- Special products engineering available to fit your special lifting, tie down and pulling needs
- 5:1 design factor
Specifications
Body MaterialAlloy Steel
Eye Outer Size3-3/4 in
FinishOrange Powder Coated
Inner Length5-3/4 in
Inner Width3-3/8 in
Load Capacity25 ton
Opening Size2-3/8 in
Pin Diameter1-5/8 in
Pin MaterialAlloy Steel
Pin TypeScrew
Size11/2 in
