Southwire COL 26020150-1

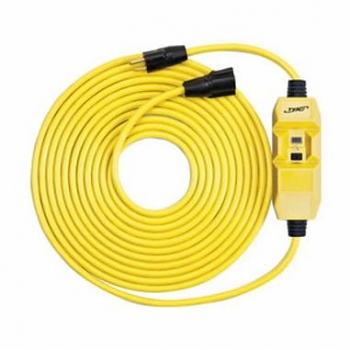

Southwire Surge Guard 26020150-1 Type SJTW-A GFCI In-Line Cord Set, 120 VAC, 15 A, 12 AWG Conductor

Invoice description: Cord Ext 50' 12/3 Gfci S Ngl End

UPC: 024098901186

UNSPSC: 39121633

Manufacturer PN: 26020150-1

^$132.62 EA

Factory Order
Estimated to ship in 13 days

enlarge

Product Overview

Southwire Surge Guard GFCI In-Line Cord Set, Type SJTW-A, 120 VAC, 15 A, 50/60 Hz Frequency, 12 AWG Conductor, 3 Conductors, -35 to 66 deg C Operating, NEMA 5-15R Receptacle, NEMA 5-15P Plug, Yellow, 50 ft L x 2 in W x 1.89 in H Dimensions

Features
GFCI in-line cord sets are excellent for industrial plant maintece, equipment service and construction site applications
Provides compliance with national electric code (NEC 2008) article 590.6 for temporary installations
Rainproof rated
To prevent unmonitored equipment startup, manual reset is required after GFCI trip and power outage
4 Ohm typical grounded neutral
Less than 25 ms trip response time for ground fault and grounded neutral trip
3 kV ringwave test and 4 kV/2 kA surge immunity test voltage surge withstand
Radio frequency noise susceptibility operates within normal limits with 0.5 volts injected on power line 150 kHz to 230 MHz
3000 operations minimum endurance
Six times rated current overload current

Specifications

ApplicationFor high pressure sprayer washers, construction site power tools, drain snakes, pumps, construction sites and industrial appliances applications

Amperage Rating15 A

ColorYellow

Conductor Size12 AWG

Dimensions50 ft L x 2 in W x 1.89 in H

Frequency Rating50/60 Hz

Number of Conductors3

Operating Temperature-35 to 66 deg C

Plug TypeNEMA 5-15P

Receptacle TypeNEMA 5-15R

TypeType SJTW-A

Voltage Rating120 VAC
