Brady BRA 65645

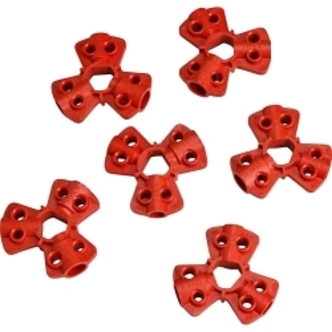

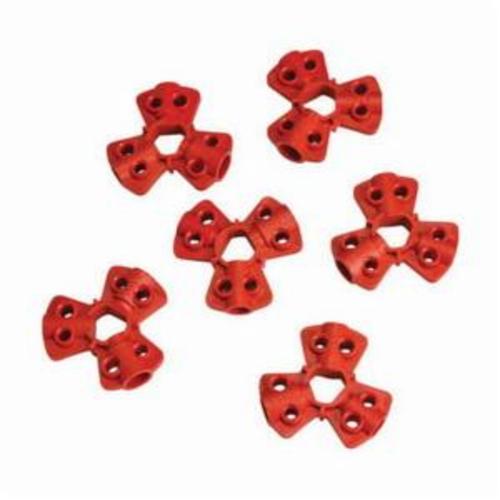

Brady 65645 Quick-Disconnect Pneumatic Hose Lockout Device, Red, 0.31 in Dia Max Padlock Shackle, 6 Padlocks, Fiberglass Reinforced Nylon, 0.83 in L x 2.875 in W x 2.875 in H
Factory Order
Brady Pneumatic Hose Lockout Device, Quick-Disconnect, 6 Padlocks Maximum, 0.31 in Padlock Shackle Maximum Diameter, Red, For Use With: 1/4, 3/8, 1/2 in Male Fittings, Fiberglass Reinforced Nylon, 0.83 in L x 2.875 in W x 2.875 in H Dimensions
Features

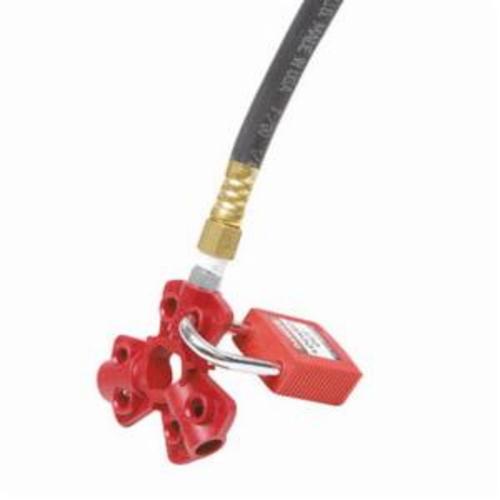

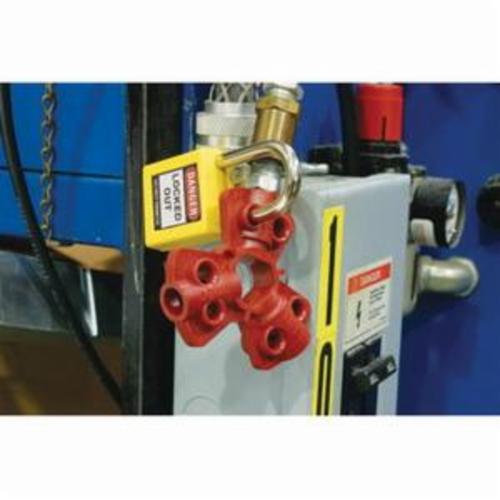

- Quick-disconnect lockout is applied to the male fitting, isolating equipment from all compressed air sources
- Hole in center of device allows for permanent storage on an air hose and a loop on the side can be used to hang the hose and lockout device
- Isolates pneumatic energy without the expense and inconvenience of installing in-line lockout valves
Specifications
ApplicationMechanical Risk Lockout Applications
ColorRed
Dimensions0.83 in L x 2.875 in W x 2.875 in H
MaterialFiberglass Reinforced Nylon
Maximum Number of Padlocks6
Padlock Shackle Maximum Diameter0.31 in
Suitable For Use With1/4, 3/8, 1/2 in Male Fittings
TypeQuick-Disconnect
