Starrett® LSS 1015MB-150

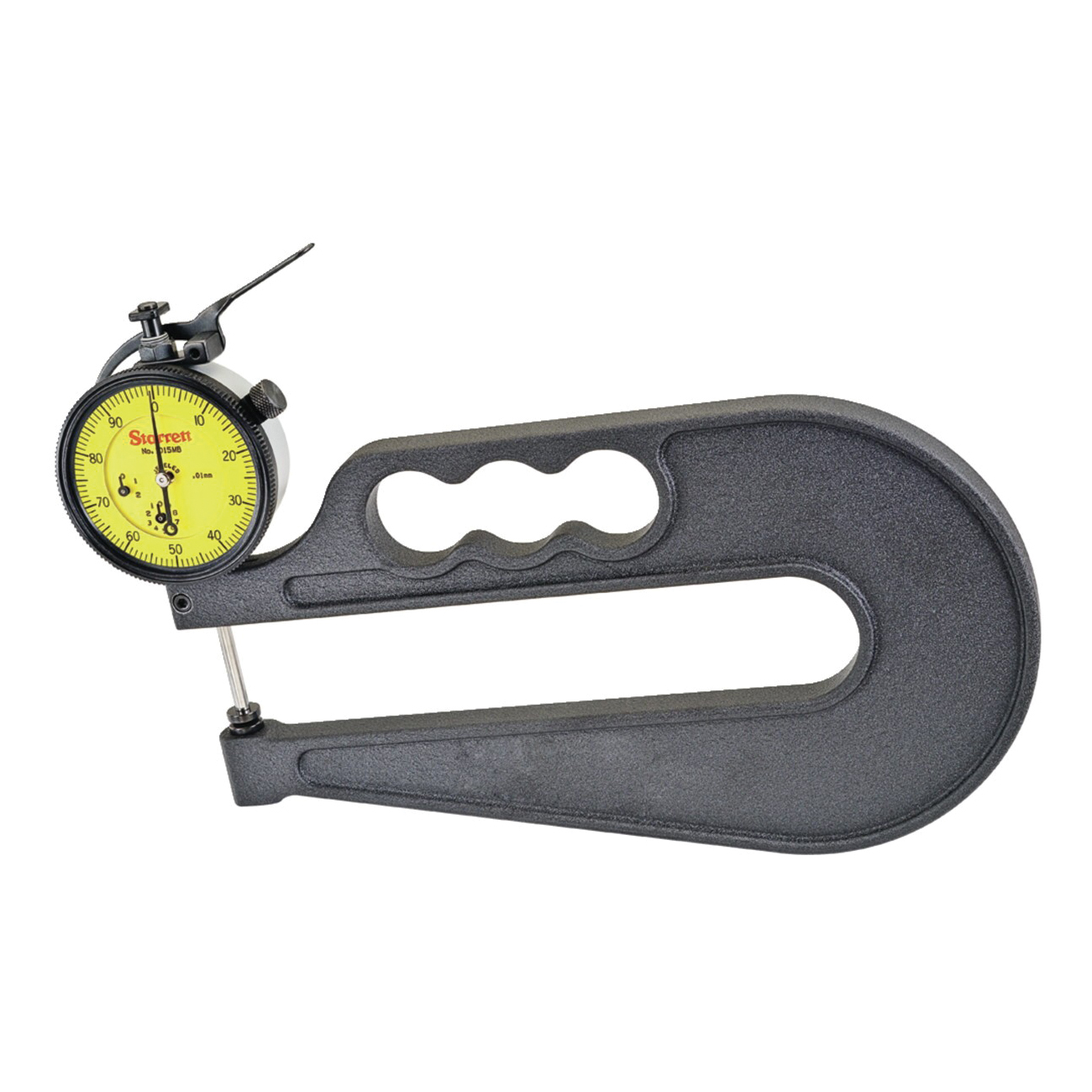

Starrett® 1015MB-150 Portable Dial Thickness Gage Without Case, 25 mm, Graduations: 0.01 mm, 1/4 in Dia Flat Contact, 150 mm D Throat

UPC: 049659676563
UNSPSC: 41111600
Manufacturer PN: 1015MB-150
$1,134.00 EA
Factory Order
QTY:


Starrett® Portable Dial Thickness Gage, Series: 1015M, 25 mm, 1/4 in Flat Contact Dia, Graduations: 0.01 mm, 150 mm Throat Depth, Electronic Indicator Display

  • Features

  • After inserting work between the measuring contacts, releasing the lever will cause the spindle to contact the work, giving an accurate size reading because measuring pressure is independent of the user
  • The contact edges are radiused to prevent the work from being marred or deflected
  • The flat contact area measures 1/4 in (6.3 mm) diameter and is 1/8 in (0.125 mm) THK
  • Indicators have jewel bearings and continuous dials
  • Special contact sizes and shapes are available by request
  • Millimeter system of measurement
  • 0 - 100 Dial reading

Specifications

Series 1015M
Measuring Range 25 mm
Flat Contact Diamete 1/4 in
Graduations 0.01 mm
Throat Depth 150 mm
