Starrett® LSS 1175MZ

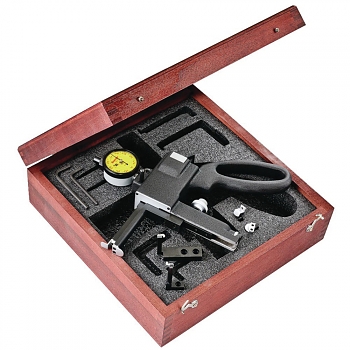

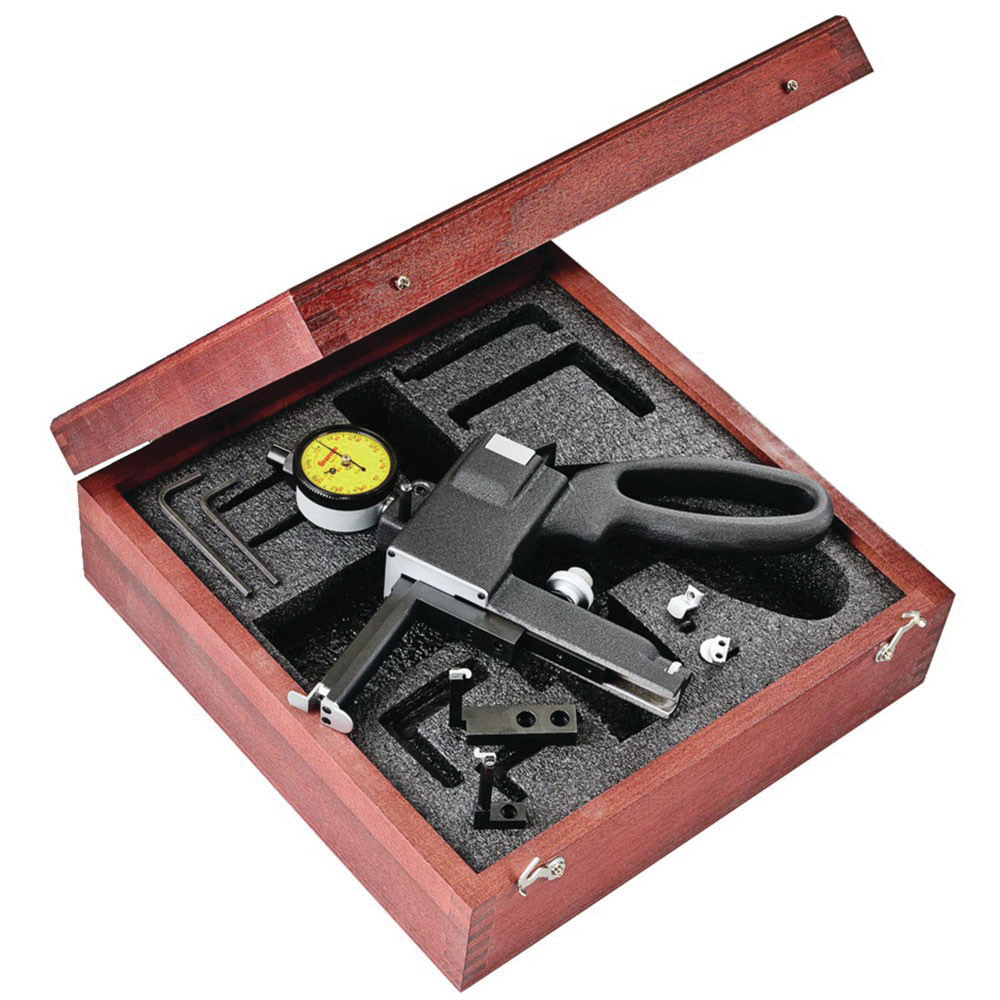

Starrett® 1175MZ Dial Indicator Groove Gage, 9.5 to 150 mm, Graduations: 0.01 mm, 0.024 in (Style 1-10), 0.034 in (Style 2-10), 0.051 in (Style 2-20) W x 0.1 in (Style 1-10), 0.14 in (Style 2-10), 0.265 in (Style 2-20) D Groove
Factory Order
Starrett® Dial Indicator Groove Gage, Series: 1175, 9.5 to 150 mm, Graduations: 0.01 mm, 0.01 mm Resolution, 0.1 in (Style 1-10), 0.14 in (Style 2-10), 0.265 in (Style 2-20) Groove Depth, 0.024 in (Style 1-10), 0.034 in (Style 2-10), 0.051 in (Style 2-20) Groove Width, Styles 1-10, 2-10, 2-20 Contact Point, Yellow Dial
Features
- The reference jaw can be mounted in two positions on the range adjusting bar
- The bar itself is also adjustable for greater or lesser range
- A fine adjustment screw and a lock are also provided
- Supplied with two sets of jaws, both readily interchangeable
- Three sets of contacts are furnished (styles 1-10, 2-10, 2-20) that can be attached to the ends of the jaws without replacing the entire jaw
- Contacts have flush ends so that grooves at the bottom of blind holes can be gaged
- Gage can be set with gage blocks or other methods such as micrometers, vernier calipers and ring gages
Specifications
Series 1175
Measuring Range 9.5 to 150 mm
Graduations 0.01 mm
Resolution 0.01 mm
Groove Depth 0.1 in (Style 1-10), 0.14 in (Style 2-10), 0.265 in (Style 2-20)
Groove Width 0.024 in (Style 1-10), 0.034 in (Style 2-10), 0.051 in (Style 2-20)
Contact Point Type Styles 1-10, 2-10, 2-20
