Starrett® LSS 123Z-12 W/SLC

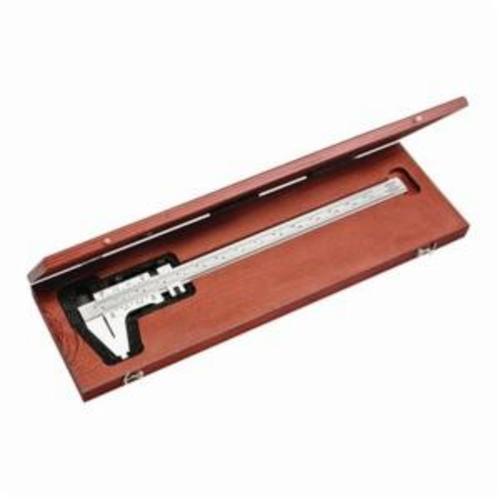

Starrett® 123Z-12 W/SLC Master Vernier Caliper With Standard Letter of Certification and Case, 0 to 12 in Measuring, Graduations 0.001 in, 2-5/16 in D Jaw, Fine Tool Steel, Satin Chrome
Factory Order
Starrett® Master Vernier Caliper, Series: 123, 0 to 12 in Measuring, +/-0.0005 in/ft Accuracy, Graduations: 0.001 in, 2-5/16 in Jaw Depth, Measuring System: Imperial, Adjustable Screw Nut, Fine Tool Steel, Satin Chrome
Features
- Long 50 division vernier scales permit half as many bar graduations as conventional single vernier tools making it easy-to read to 0.001 in or 0.02 mm
- Open-face design allows both the inside and outside to be read without turning the tool over
- Divider points on the back side to accurately set dividers and trammels
- Hardened and stabilized bars
- 15/16 in W bar
- 0.3 in W nib when closed
Specifications
Series 123
Measuring Range 0 to 12 in
Accuracy +/-0.0005 in/ft
Graduations 0.001 in
Jaw Depth 2-5/16 in
Measuring System Imperial
Nut Type Adjustable Screw
Material Fine Tool Steel
