Starrett LSS 124CZ

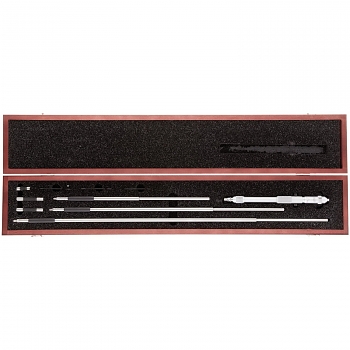

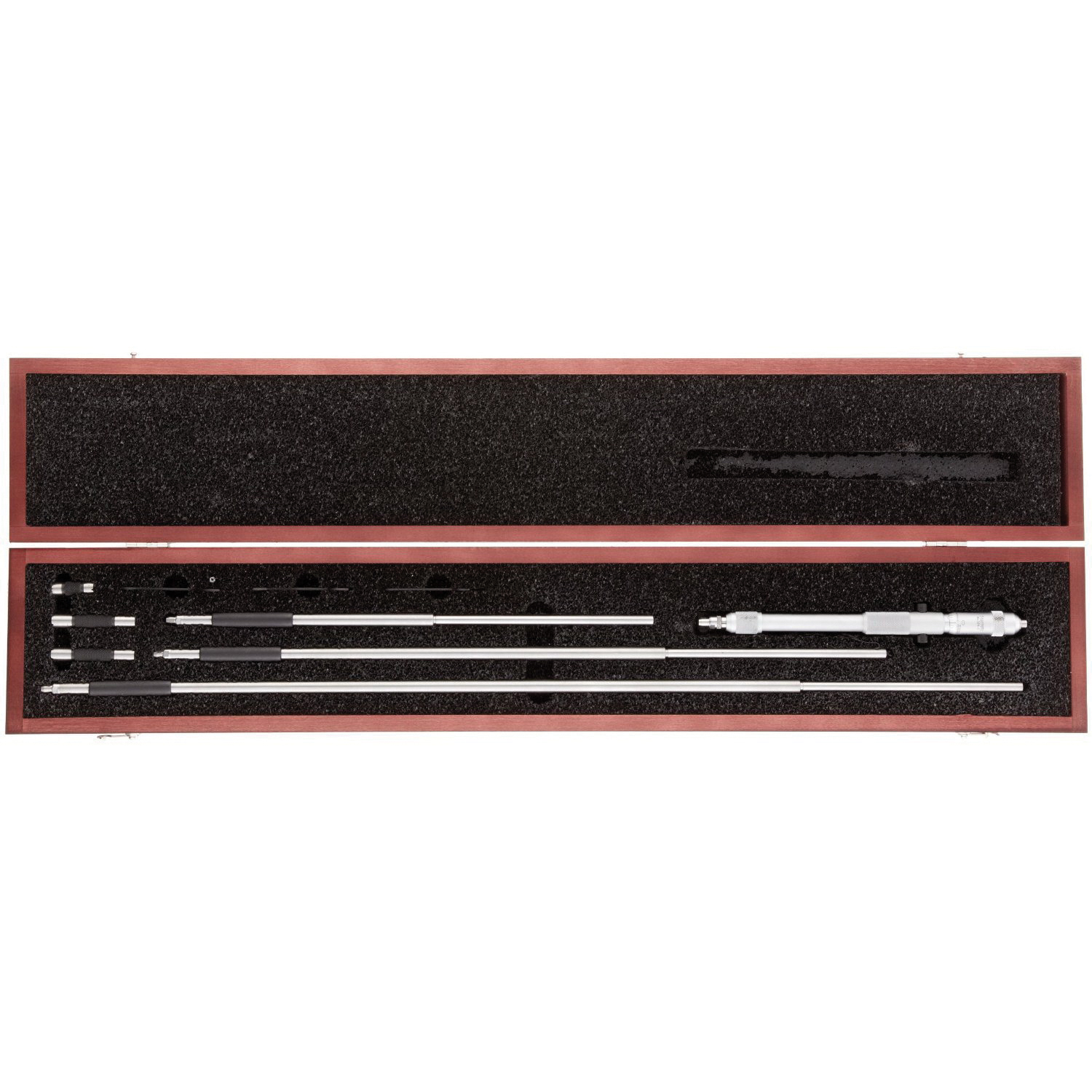

Starrett 124CZ Solid Rod Inside Micrometer, 8 to 32 in, Graduations: 0.001 in, Steel
Invoice description:
Solid-rod Inside Microme Te Rs No.124 124m Se
Factory Order
Starrett Inside Micrometer, Solid Rod, Series: 124, 8 to 32 in, +/-0.0001 in Accuracy, Graduations: 0.001 in, 0.001 in Resolution, Adjustable Anvil, Steel
Features
- Insulated rods marked with length
- Adjustable for length
- Measuring rods are solid
- Hardened and ground anvils on solid rods, for accuracy
- Quick reading figures
- Features a shoulder to set in the micrometer head that locks in position to ensure accuracy
- Lightweight for ease of use
- 6-1/2 in (165mm) long handle is available (124H)
- One 1 in, two 2 in spacing collar
- 4 measuring rod
Specifications
ApplicationFor measuring inside diameters of cylinders and rings and measuring parallel surfaces
Accuracy+/-0.0001 in
Anvil TypeAdjustable
Graduations0.001 in
MaterialSteel
Measuring Range8 to 32 in
Resolution0.001 in
Series124
TypeSolid Rod
Additional Information
IncludesMicrometer Head, #124C Body, ENGLISH, 0.375-52 Nut, Shell, Outside-ENG, Adjusting Shell, Barrel Spring, 0.297-40 Spindle SCR, Cap Shell, (2) Short Handle, 0.437-40 Nut, 07387-0 Chuck, Rod, #3 Wrench, (2) 2 in Large Collar, 1 in Small Collar, 8-14 Rod, ENG
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
